Description

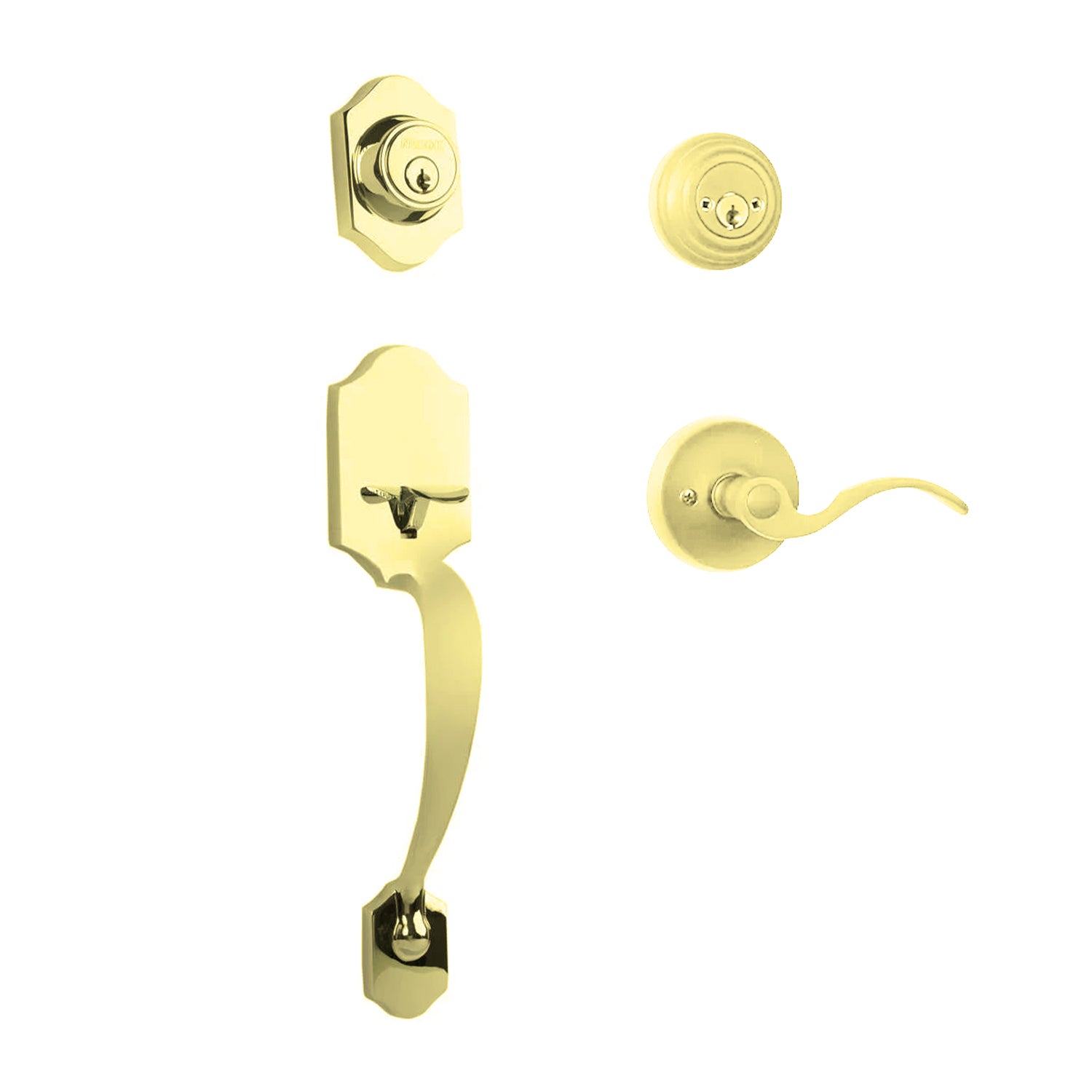

N2lok Charente Double Cylinder Flutto on Piatta Entry Set
765 CH DC FL/PI L03 BP
Double Cylinder Entry Set is a type of door hardware that features a lock that requires a key to operate from both the exterior and interior sides. This design offers enhanced security since it prevents intruders from breaking glass or otherwise accessing the interior lock to gain entry.
Double Cylinder Entry Set Function - provides added security, especially for doors with glass panes or sidelights, as intruders cannot unlock the door by breaking the glass and reaching in.
Features:
- Made of solid forged brass substrate for enduring style & strength
- Supplied with the "wave" internal lever or an egg knob in place of the lever. (Egg knob not available on Interconnecting Set)
- 6 pin solid brass cylinder with the popular C4 keyway for more security
- 3 identically cut keys supplied with each entry handle suite
- Smart non-handed lever design
Specifications:
-
Cylinder Height: 88m
-
Cylinder Width: 59mm
-
Cylinder External Projection: 25.8mm
-
Cylinder Internal Projection: 28mm
-
Overall Height: 417.5mm
-
Handle Width:Â 67.8mm
-
Handle Projection: 61mm
-
Door Thickness: 35 to 45mm
-
Backset: 60mm to 70mm
-
Lever Rose Diameter: 75mm
-
Lever Projection: 65mm
-
Packaging: Box Pack
-
Finish: Polished Brass
Note:
- N2lok strives to provide you with consistently outstanding quality. We only source from vendors who have been audited to achieve world's best workplace practices and meet or surpass ISO 9001 certification.
- All our products come with a 7 year mechanical warranty and a 5 year finish warranty (Our living finishes: Matte black & Venetian bronze are only a 12 month finish warranty while Satin Brass in not covered by warranty).
