TS.9205.SRSA.EB | Door Closer Combined Unit Slide Armset Electro Brass | Zanda Architectural

Description

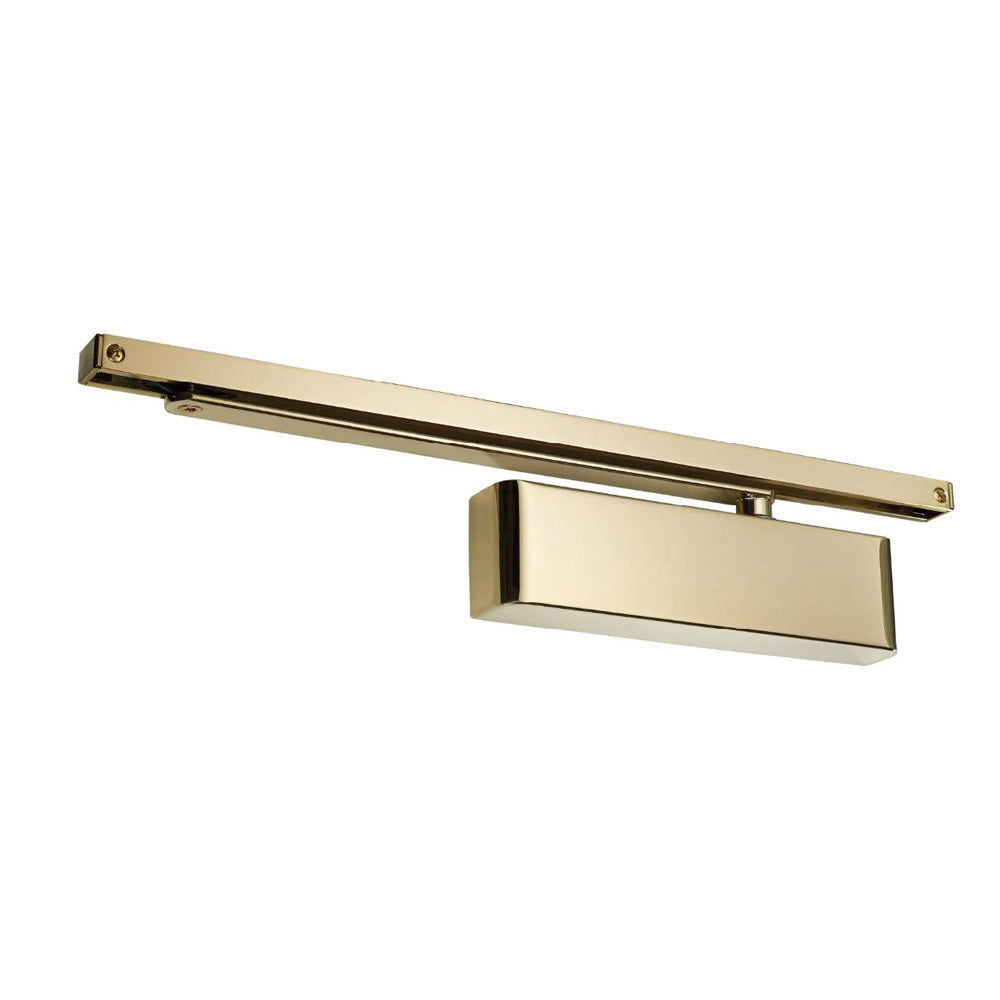

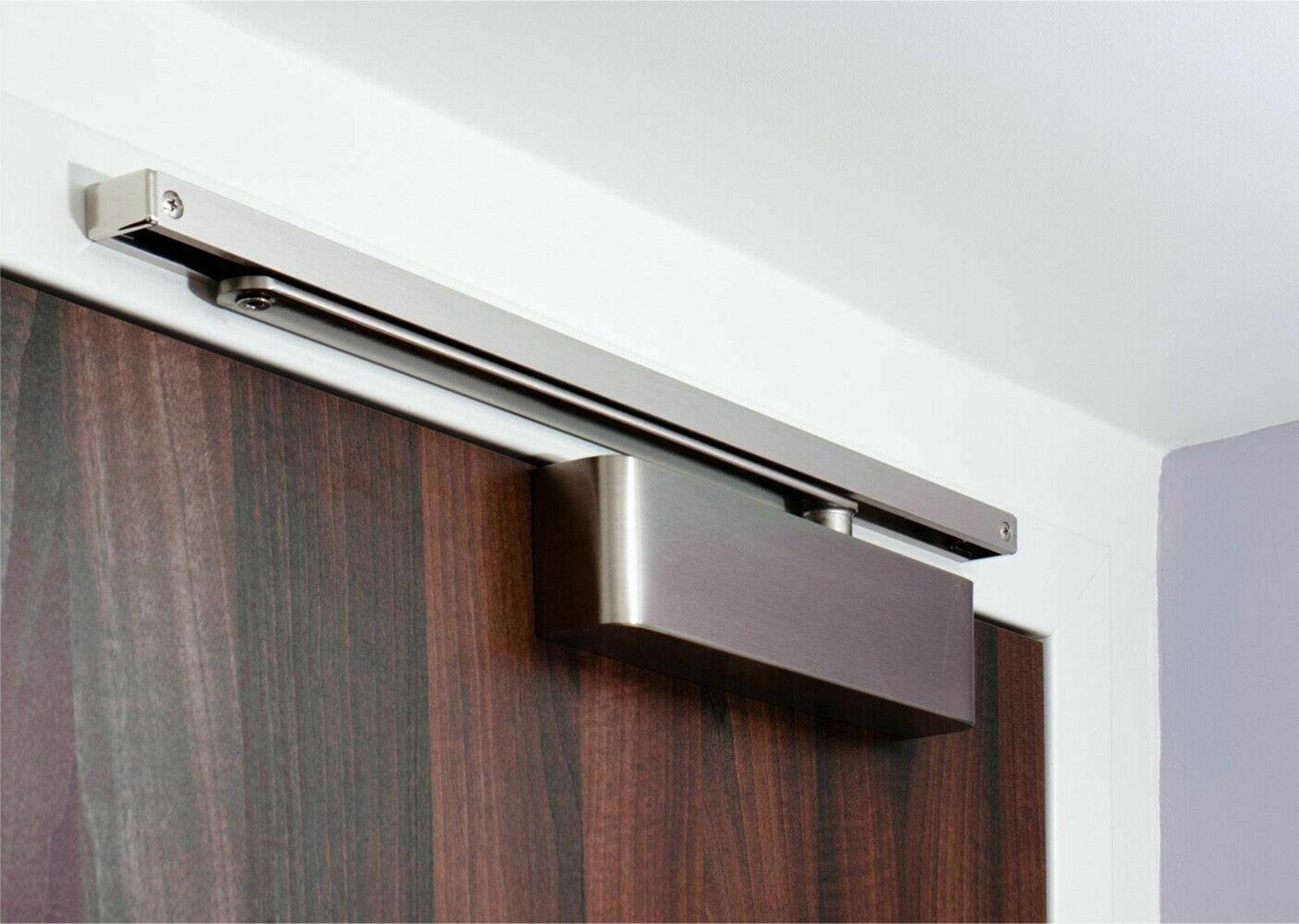

Zanda Door Closer Combined Unit - Slide Armset
TS.9205.SRSA.EB

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

  • 1 x TS9205 mechanism
  • 1 x Slide Armset
  • 1 x Semi-Radiused Cover

Features:

  • Variable power adjustable EN2-5
  • Suits doors up to 110kg and 1250mm wide
  • Universal application can be fitted in Standard, Parallel arm or Transom fitting position
  • Comes standard with delayed action and back check.
  • Unique semi-radius cover for an architectural look make your project stand out
  • Fire tested to Australian standards
  • Ideal for disability compliant projects due to its ease of opening and efficiency
  • Closing and latching speeds can be adjusted from the front of the mechanism
  • Suitable for timber, metal and aluminium doors

Specifications:

  • Strength: EN2-5 up to 850mm to 1250mm and 45kg to 110kg
  • Mechanism: Rack and Pinion
  • Adjustable Closing Speed: Yes
  • Adjustable Latch Action: Yes
  • Adjustable Delayed Action: Optional
  • Adjustable Back Check: Yes
  • Max Door Width: 1250mm
  • Max Door Weight: 110kg
  • Opening Angle: 180 degrees
  • Left Hand and Right Hand Doors Universal Application: Yes
  • Fire Rated (BS EN 1634-1: 2000): Yes
  • Tested to BS EN1154: 1997: Yes
  • Finish: Electro Brass

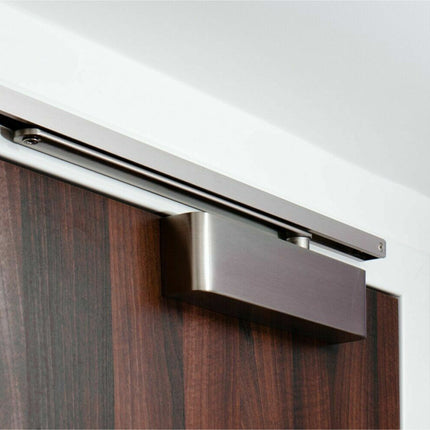

TS.9205.SRSA.EB | Door Closer Combined Unit Slide Armset Electro Brass | Zanda Architectural
Product form

SKU: TS.9205.SRSA.EB
Barcode: 9343226020942

In stock with supplier - ships in 5 - 8 days  Made to Order Products 3 Weeks

    $580.36 $520.00 Incl. TAX
