Description

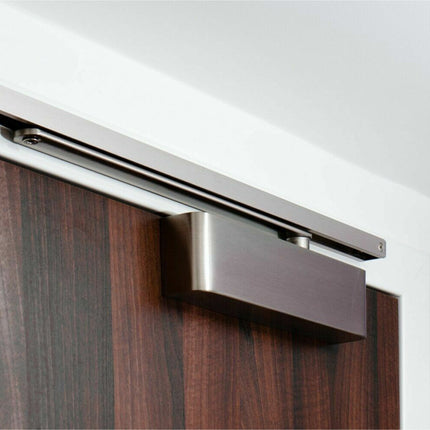

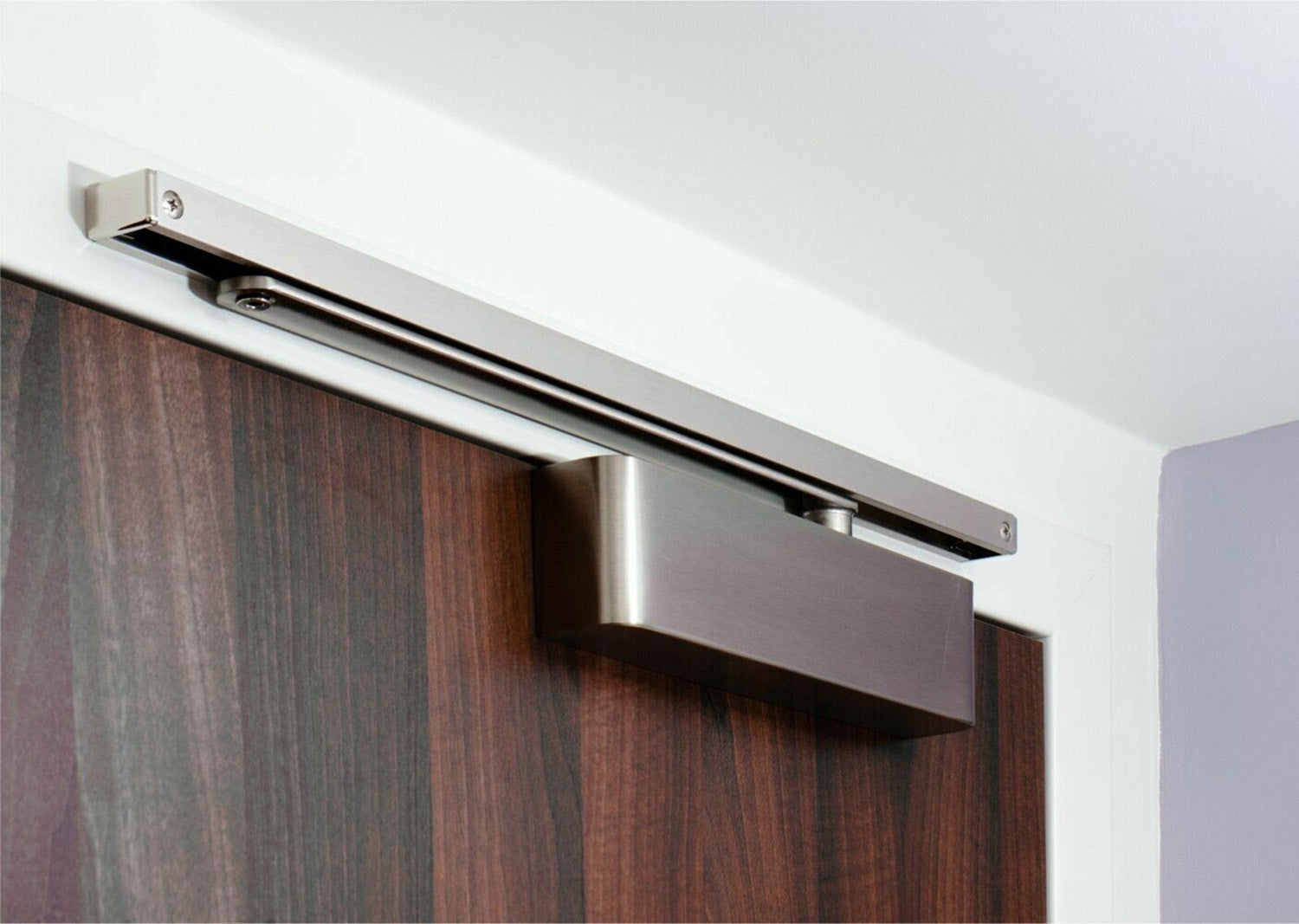

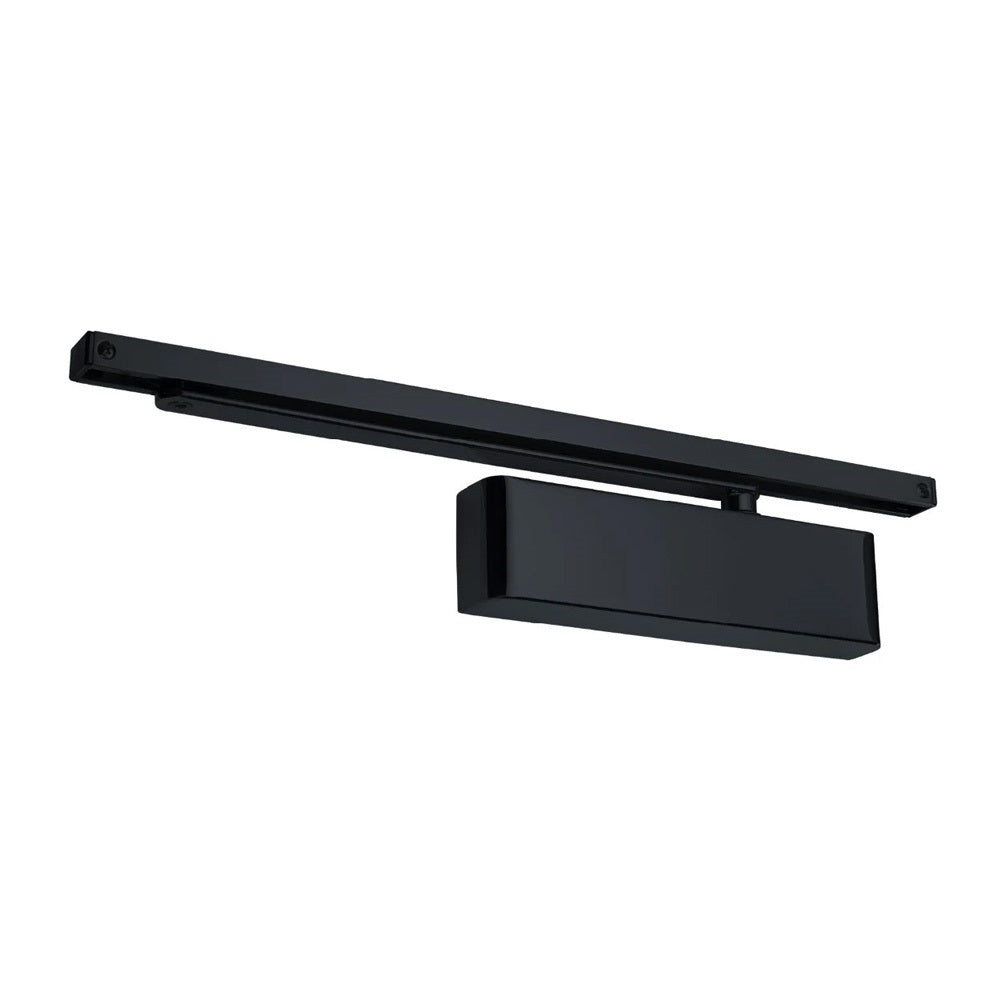

Zanda Door Closer Combined Unit - Slide Armset
TS.9205.SRSA.BL
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Includes:
- 1 x TS9205 mechanism
- 1 x Slide Armset
- 1 x Semi-Radiused Cover
Features:
- Variable power adjustable EN2-5
- Suits doors up to 110kg and 1250mm wide
- Universal application can be fitted in Standard, Parallel arm or Transom fitting position
- Comes standard with delayed action and back check.
- Unique semi-radius cover for an architectural look make your project stand out
- Fire tested to Australian standards
- Ideal for disability compliant projects due to its ease of opening and efficiency
- Closing and latching speeds can be adjusted from the front of the mechanism
- Suitable for timber, metal and aluminium doors
Specifications:
-
Strength: EN2-5
-
Mechanism: Rack and Pinion
-
Adjustable Closing Speed: Yes
-
Adjustable Latch Action: Yes
-
Adjustable Delayed Action: Optional
-
Adjustable Back Check: Yes
-
Door Width: 850mm to 1250mm
-
Door Weight: 45kg to 110kg
-
Opening Angle: 180 degrees
-
Left Hand and Right Hand Doors Universal Application: Yes
-
Fire Rated (BS EN 1634-1: 2000): Yes
-
Tested to BS EN1154: 1997: Yes
-
Finish: Matt Black
