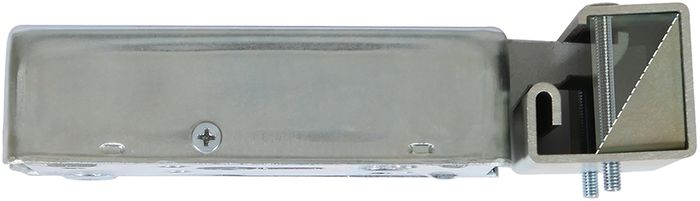

Electric Gate Lock V06-WB Universal Handing, 70 mm B-Set, Galvanised Steel

Description

V06-WB Electric Gate Lock – Universal Handing, 70 mm B-Set, Galvanised Steel

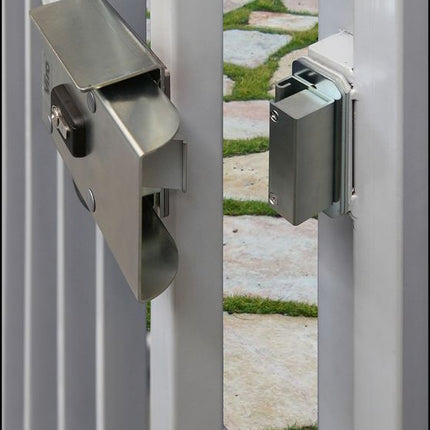

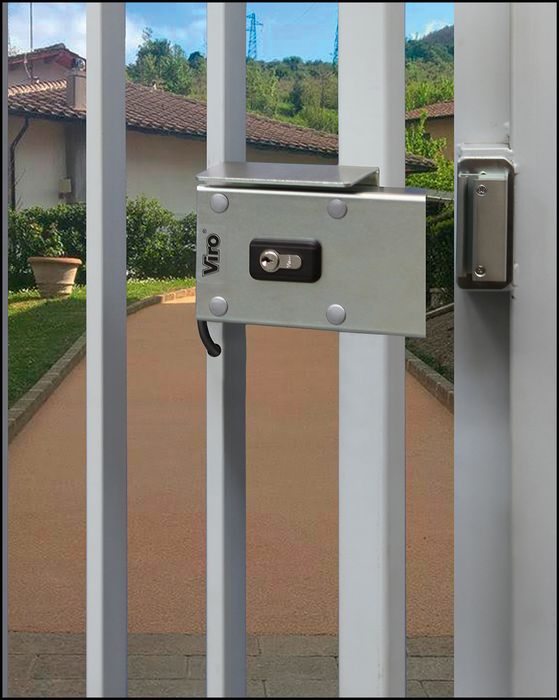

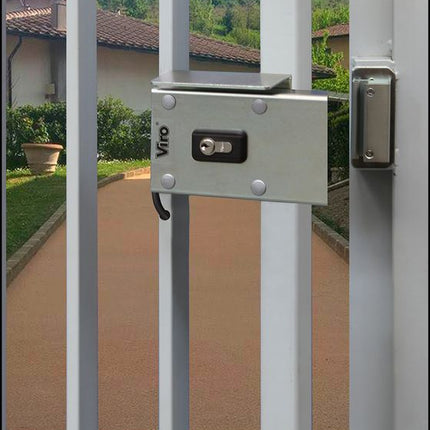

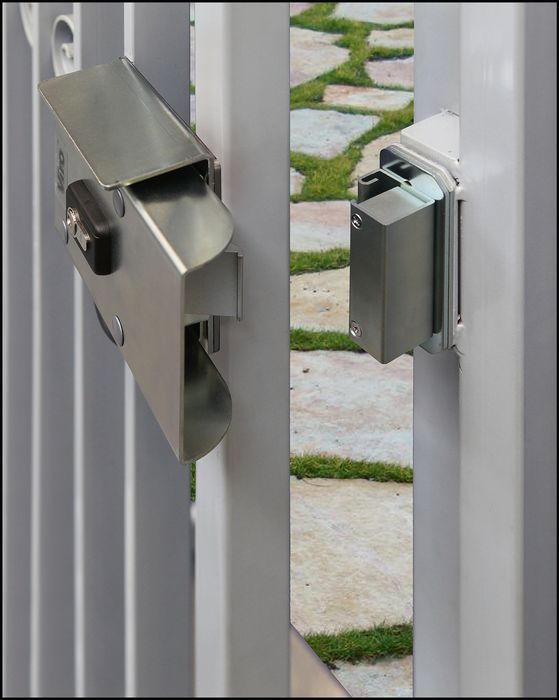

The V06‑WB electric gate lock is engineered for smooth, secure installation on gates without rebates or with high mechanical clearance—especially Bi‑Directional and Swing Gate setups. Its galvanised steel construction offers exceptional resistance to harsh weather, ensuring reliable performance and enhanced security for driveways, pedestrian gates, and automated entry systems.

Key Functionality:

  • Designed for horizontal installation on non-overlapping gates like driveway or pedestrian doors.

  • Equipped with a latching deadbolt and protection plate to provide robust physical security and reduce vulnerability to side pressure or forced entry.

  • It comes with two modes:

    • Service Mode (default): Opens with a single electric pulse and resets only after the gate is opened and closed—perfect for use with door closers or automation systems.

    • Security Mode (optional): Requires simultaneous electric pulse and mechanical pressure to release—ideal for enhanced protection scenarios.

Specifications:

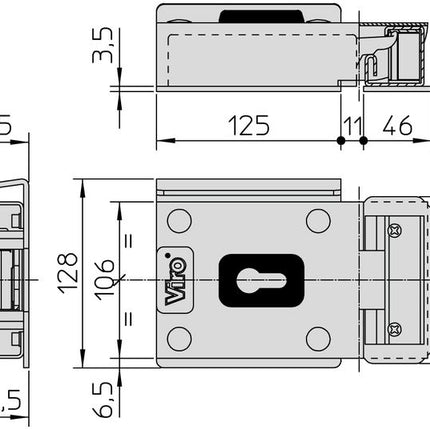

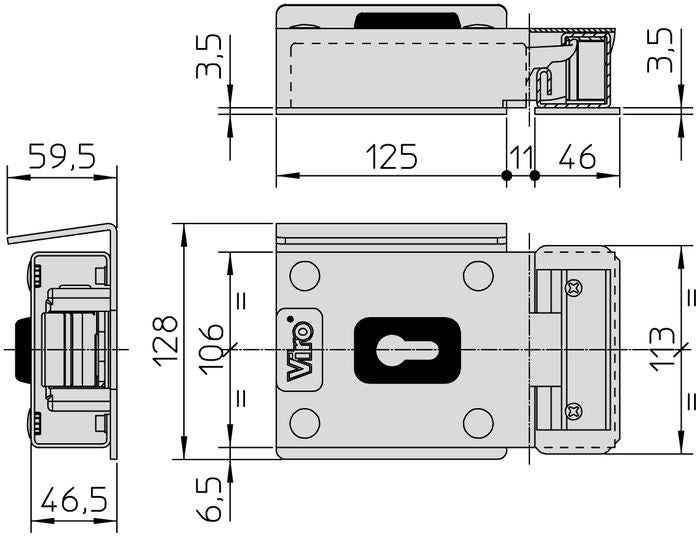

  • Backset: 70 mm

  • Construction: One-piece galvanised steel case and cover designed for durability in exterior environments.

  • Deadbolt: Rotating stainless steel bolt with hooking design for secure engagement.

  • Voltage Options: Standard 12 V AC, also available (on request) in 12 V DC or 24 V AC/DC configurations.

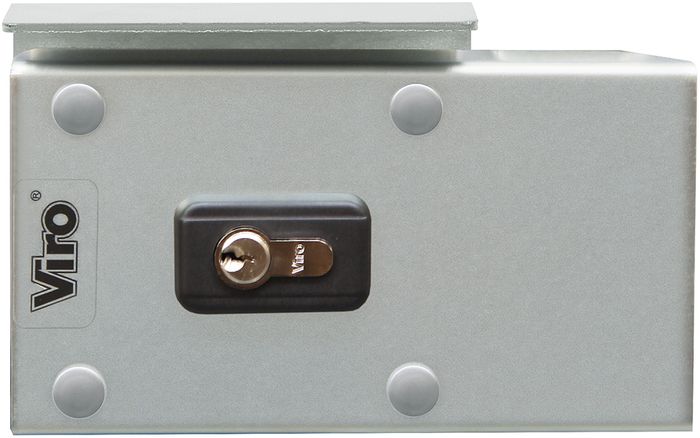

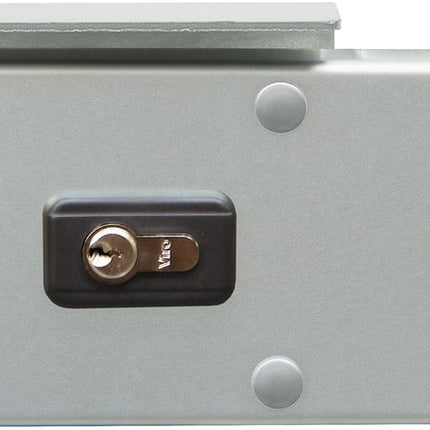

  • Cylinder Compatibility: Accepts half or double Euro-profile cylinders (not included).

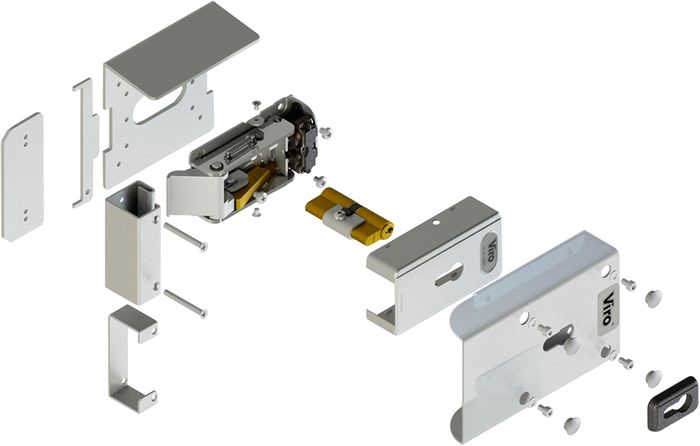

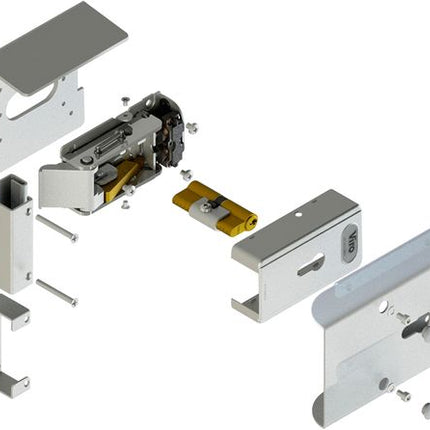

  • Package Includes: Galvanised striker, protection plate (for clearances), alignment template, nylon ring nut, plugs, cylinder support bracket, and fixing screws.

Electric Gate Lock V06-WB Universal Handing, 70 mm B-Set, Galvanised Steel
Product form

SKU: 1-7918-WB

Delivery to you 3-6 business days  Made to Order Products 3 Weeks

  • Shipped today? Order within: Oct 07, 2025 17:00:00 +1100

$398.25 $346.47 Incl. TAX

      • Guaranteed secure & safe checkout.

        stripe

        Features

      Bi-Directional Compatibility – Universal handing suits a wide range of gates without rebate.

      ⏱ Quick & Clean Install – No need for floor rebating or gate pins; perfect for retrofit or new installs.

      Weather-Resistant – Fully galvanised body protects against rust and corrosion.

      Flexible Operation Modes – Service or Security modes give control over access and safety.

      Built to Last – Heavy-duty materials and removable coils ensure long-term reliability.

      Description

      V06-WB Electric Gate Lock – Universal Handing, 70 mm B-Set, Galvanised Steel

      The V06‑WB electric gate lock is engineered for smooth, secure installation on gates without rebates or with high mechanical clearance—especially Bi‑Directional and Swing Gate setups. Its galvanised steel construction offers exceptional resistance to harsh weather, ensuring reliable performance and enhanced security for driveways, pedestrian gates, and automated entry systems.

      Key Functionality:

      • Designed for horizontal installation on non-overlapping gates like driveway or pedestrian doors.

      • Equipped with a latching deadbolt and protection plate to provide robust physical security and reduce vulnerability to side pressure or forced entry.

      • It comes with two modes:

        • Service Mode (default): Opens with a single electric pulse and resets only after the gate is opened and closed—perfect for use with door closers or automation systems.

        • Security Mode (optional): Requires simultaneous electric pulse and mechanical pressure to release—ideal for enhanced protection scenarios.

      Specifications:

      • Backset: 70 mm

      • Construction: One-piece galvanised steel case and cover designed for durability in exterior environments.

      • Deadbolt: Rotating stainless steel bolt with hooking design for secure engagement.

      • Voltage Options: Standard 12 V AC, also available (on request) in 12 V DC or 24 V AC/DC configurations.

      • Cylinder Compatibility: Accepts half or double Euro-profile cylinders (not included).

      • Package Includes: Galvanised striker, protection plate (for clearances), alignment template, nylon ring nut, plugs, cylinder support bracket, and fixing screws.
