Description

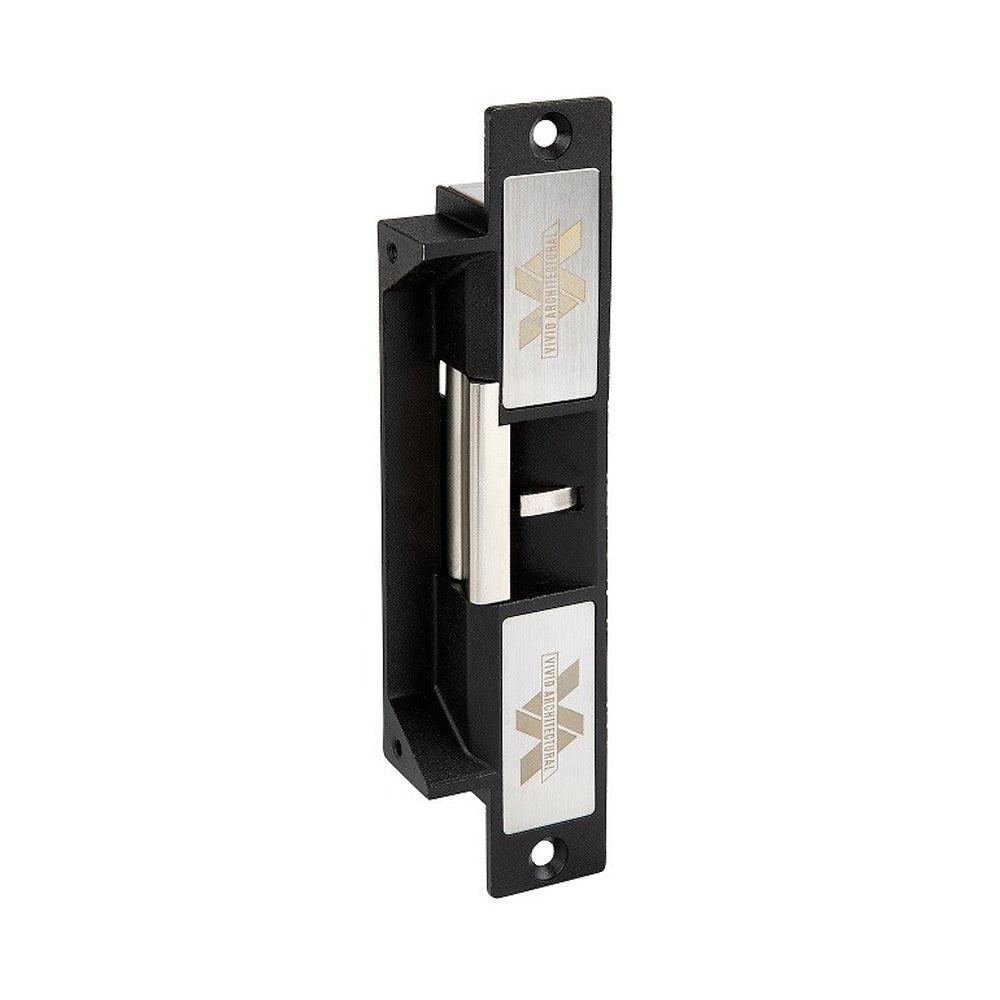

Zanda Electric Strike High Security
ESV.200.MPFR
Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
Features:
- Stainless steel face plate and keeper
- Easily change from Power to Lock / Power to Open
- Field Interchangeable
- Non-handed
- Fully Reversible
- Approvals CE tick, ROHS Compliant
- Fire Rated
Specifications:
-
Length: 174mm
-
Width: 29mm
-
Depth: 30mm
-
Voltage: 12Vdc and 24Vdc
-
Monitoring: Monitored Preload
-
Holding Force: 680 kg Static Strength Rating
-
Latch: Compatible with latch depth up to 18mm
