Description

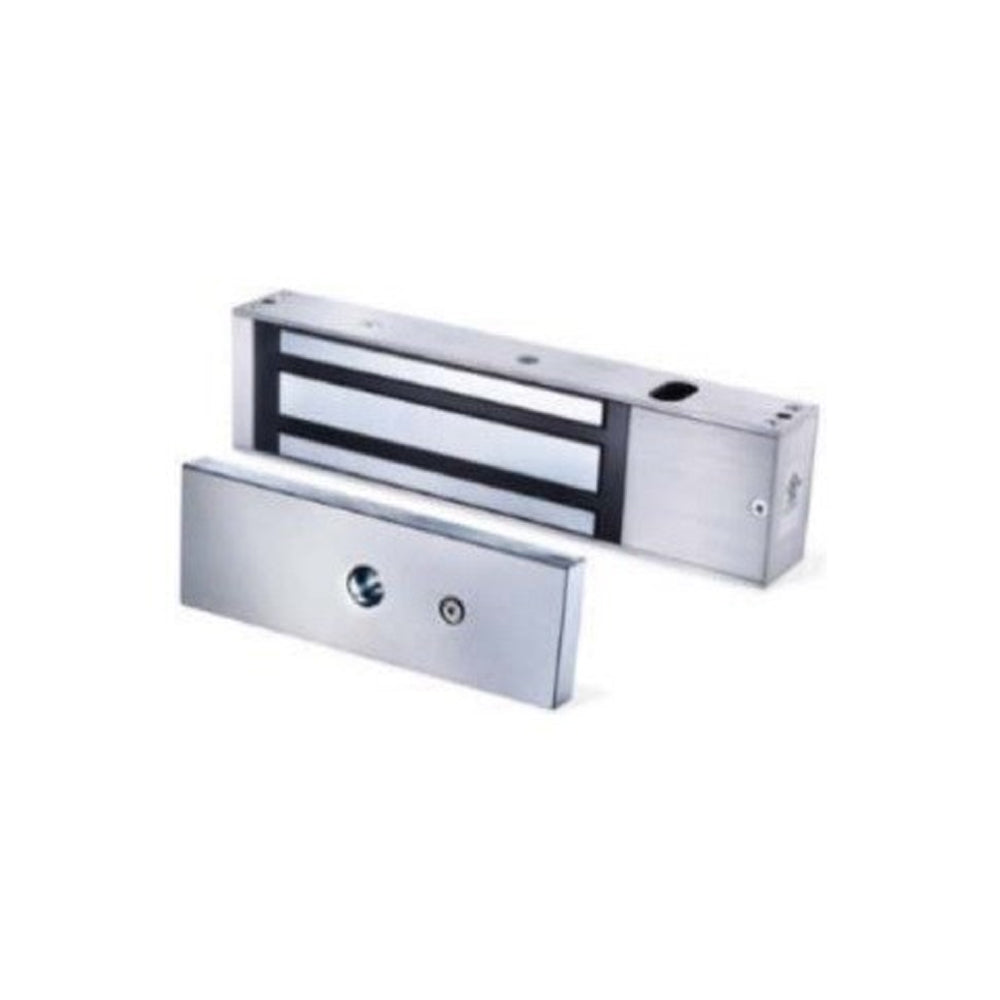

Zanda Electromagnetic Maglock
EML.550.SE
Electromagnetic Maglock is commonly used in various security applications, including commercial buildings, government facilities, schools, hospitals, airports, and other high-security environments where controlled access is essential.
Electromagnetic Maglock Function - use electricity to create a magnetic field that securely locks doors with an armature plate, which releases when power is interrupted, often integrating with access control systems and offering fail-safe or fail-secure options for enhanced security.
Features:
- Monitored – door & lock status sensor
- Configurable large red/green LED indicator 37x15mm
- Optional relock time delay
- Anti tamper adjustable mounting plate for easy installation
- Reversible for left or right handed doors
- Aluminium anodized casing
- Approvals CE tick, ROHS Compliant
Specifications:
-
Holding Force: Up to 550 Kg.
-
Holding Strength: 680 Kg.
-
Dual Voltage: 12/24 VDC field selectable
-
Magnet:
-
Length: 267mm
-
Height: 68mm
-
Depth: 40mm
-
Armature Plate (including surround):
- Length: 214.7mm
-
Height: 67mm
-
Depth: 20mm
-
Mounting Plate:
- Length: 267mm
-
Height: 8mm
-
Depth: 40mm
-
Finish: Silver
