Description

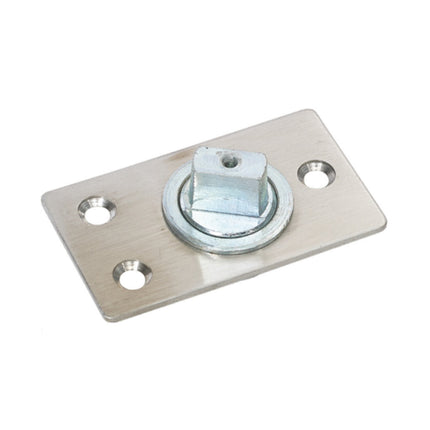

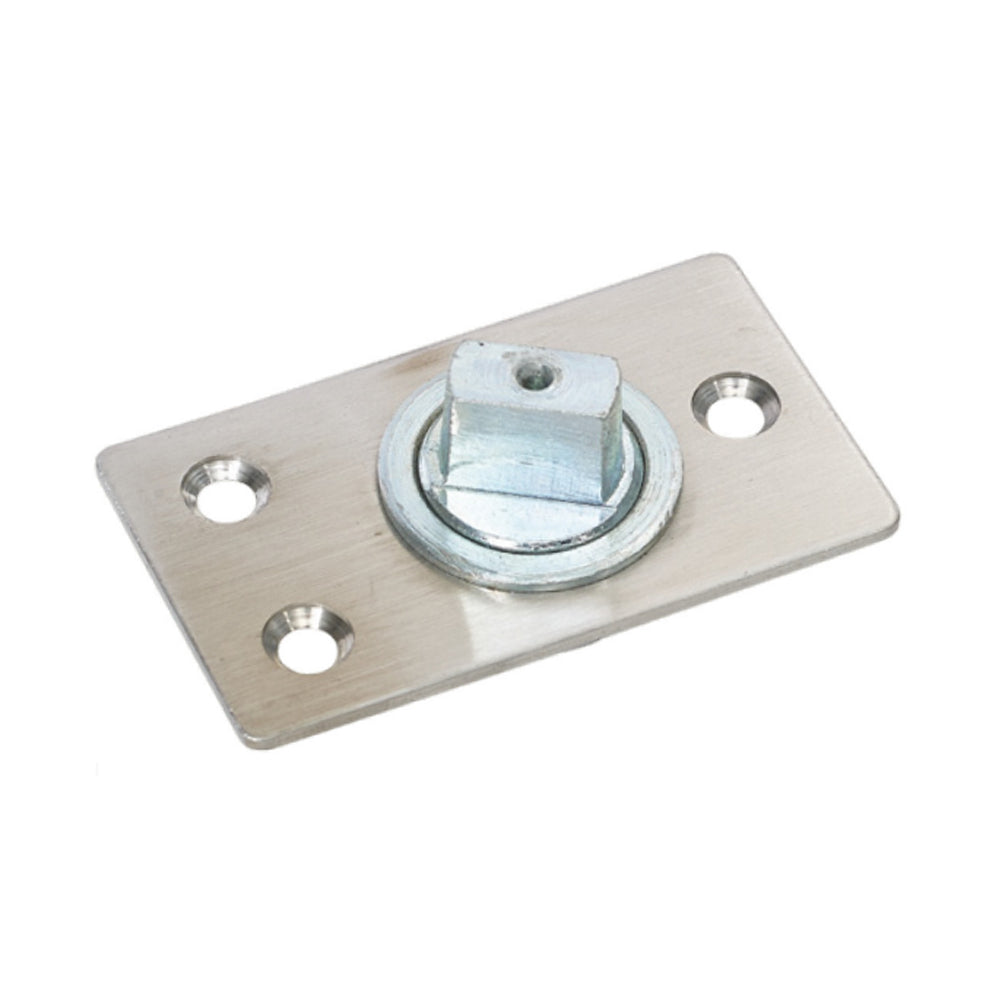

Zanda Heavy Duty Floor Mount Spindle For Pivot Doors
PS.260.SSS
Floor Mount Spindle is commonly used in modern and contemporary architectural designs to create visually striking and functional entrances.
Floor Mount Spindle Function - serves as the central pivot point around which the door rotates, distributes the weight of the door, ensures smooth operation, and contributes to the overall aesthetics and functionality of the door system.
Features:
- Allows doors to swing both ways
- In double action fits directly under door leaf meaning the plate isn’t visible
- Bronze bearings oil impregnated for low maintenance
- Suitable for FD30 and FD60 doors, to BS 476 for both single and double door applications
- 304 grade stainless steel plate
- Suitable for use with PS.170 & PS.180
Specifications:
-
Door Thickness: 44mm and above
-
Maximum Door Width: 1100mm
-
Spindle Bearing: 90mm x 50mm
-
Max. Door Weight: 80Kg
-
Finish: Satin Stainless Steel
