Description

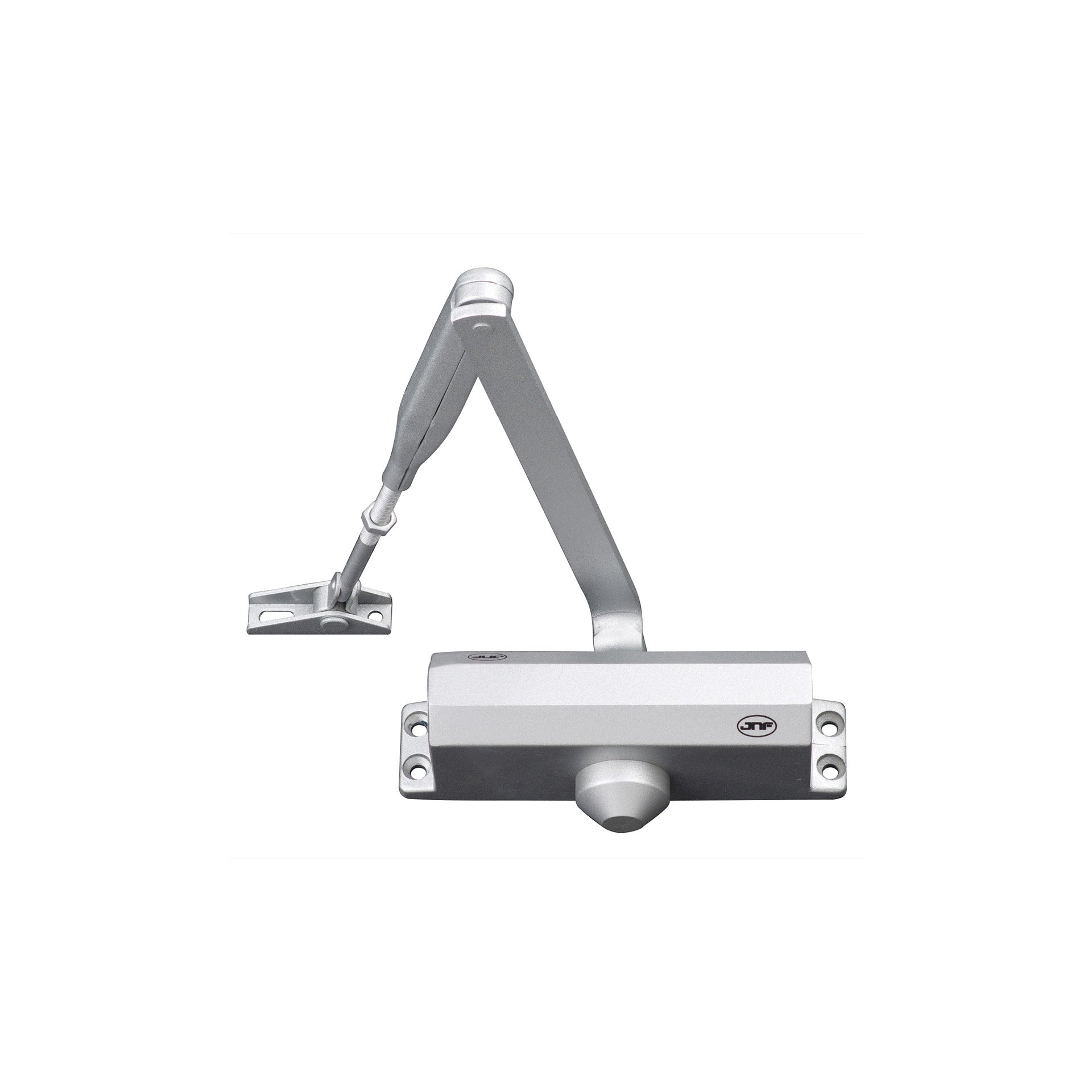

JNF ML.21.600.BS Hydraulic Overhead Door Closer from the 600 Series is a high-performance door closing solution designed for both residential and commercial settings. This hydraulic door closer features a standard arm without retaining and an adjustable power range of 2-4, allowing it to accommodate various door sizes and weights. With a maximum door width of 1100mm and a maximum door weight of 80kg, this closer is suitable for medium-sized doors.
JNF ML.21.600.BS model, available in RAL 9006 Silver, is ideal for environments requiring a sleek, modern aesthetic. The rack and pinion mechanism and adjustable closing and latching speeds ensure smooth and reliable door operation. Additionally, the closer provides a 180° opening angle, allowing for a full range of door motion. Certified as fireproof and carrying the EN1154 certification, this overhead closer meets the highest safety standards.
Features:
-
-
Adjustable Power (2-4): Allows customization based on door size and weight, ensuring smooth door operation.
-
Maximum Door Width: Supports doors up to 1100mm wide.
-
Maximum Door Weight: Designed for doors weighing up to 80kg.
-
Power Adjustment by Position: Adjustable power through the position of the closer.
-
Rack and Pinion Mechanism: Ensures consistent and smooth door closing and opening.
-
Adjustable Closing Speed: Fine-tune the door’s closing speed through the valve for controlled operation.
-
Adjustable Latching Speed: Adjust the latching speed for a secure close.
-
180° Opening Angle: Provides a full range of door motion.
-
Reversible Design: Can be installed on both left and right-handed doors.
-
Fireproof Certified: Complies with fire safety standards, ensuring reliable performance in fire-rated doors.
-
RAL 9006 Silver Finish: The black edition offers a sleek, contemporary look, making it suitable for modern interiors.
Specifications:
-
-
Model: ML.21.600.BS (Silver Finish)
-
Material: Aluminium body
-
Power Range: Adjustable from 2-4
-
Maximum Door Width: 1100mm
-
Maximum Door Weight: 80kg
-
Mechanism: Rack and pinion mechanism
-
Opening Angle: 180°
-
Adjustments:
- Power adjustment via position
- Closing speed adjustable via valve
- Latching speed adjustable via valve
-
Certification: Fireproof certified, EN1154 marking
-
Finish: RAL 9006 (Silver)
-
Packaging Dimensions: Standard packaging for commercial and residential applications
