Description

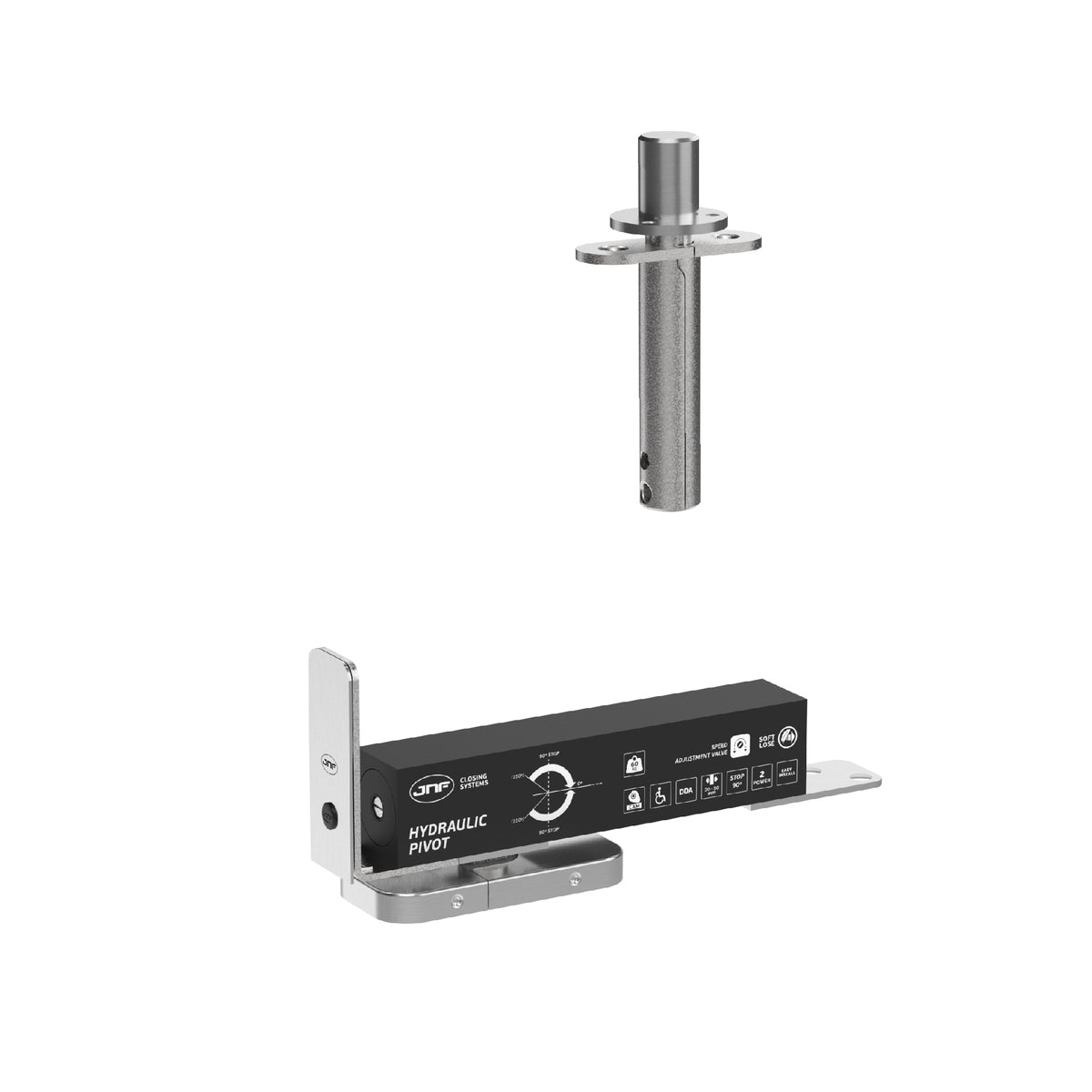

Hydraulic Pivot Set for Double Action or Rebated Wood Doors IN.05.203.HO
JNF Hydraulic Pivot Set IN.05.203.HO is designed for wooden doors in high-traffic areas, making it an ideal solution for office buildings, retail outlets, residential spaces, and hospitality venues. Its durability and reliability make it perfect for both interior and exterior wooden doors, especially in spaces that require controlled door movement, such as conference rooms, lobbies, and entranceways.
-
-
Advanced Hydraulic Mechanism: Ensures smooth and controlled door operation.
-
CAM System Integration: Reduces resistance during door opening, making it easier to use.
-
Bidirectional Regulation: Suitable for both single and double-action wooden doors.
-
Concealed Design: All pivot components are hidden within the door and floor, maintaining the clean aesthetics of modern interiors.
-
Durable Construction: Made from high-quality stainless steel (EN 1.4301), ensuring strength and corrosion resistance.
-
Easy Installation and Adjustment: Comes with pre-packaged screws and detailed instructions, allowing for straightforward setup.
-
Compliance and Certification: Certified according to EN1154 standards, ensuring quality and safety.
-
Adjustable Closing Speed: Equipped with speed regulation valves for precise closing and latching speeds.
-
Heavy-Duty Performance: Supports doors weighing up to 60kg with a maximum width of 1000mm.
-
Directional Control: Provides a 90° and 150° opening angle, with precise positioning control.
Specifications:
-
-
Material: Stainless Steel EN 1.4301
-
Finish: Satin or Polished
-
Maximum Door Weight: 60 kg
-
Maximum Door Width: 1000 mm
-
Recommended Door Thickness: 40-50mm
-
Pivot Axis: Adjustable with ±4º regulation
-
Height Adjustment: ± 3 mm
-
Latching Speed: Adjustable using the Nº1 valve
-
Brake Speed: Adjustable using the Nº2 valve
-

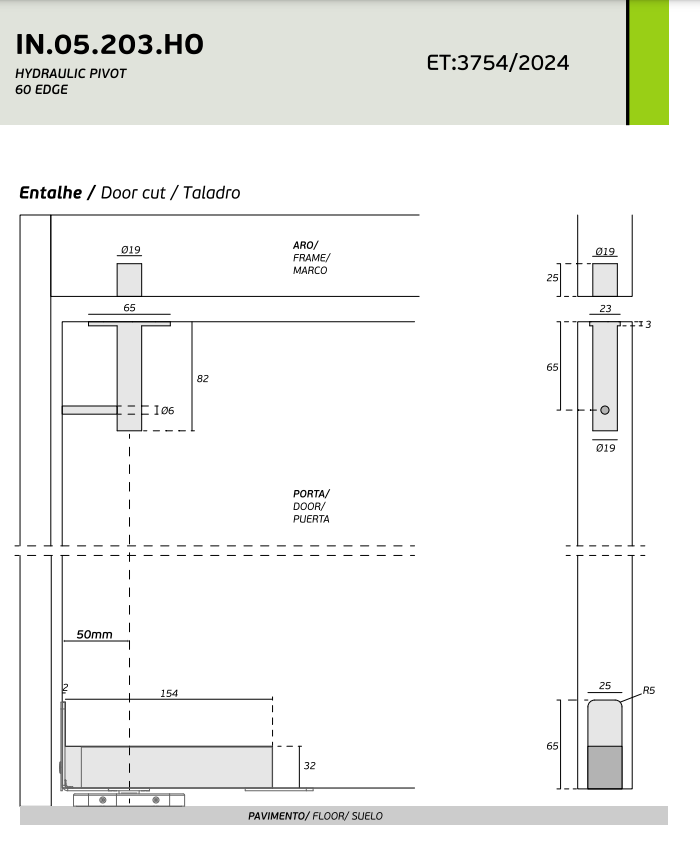

Installation Type: Concealed within the door and base
-
Opening Angles: 90º, 150º, and 180º
