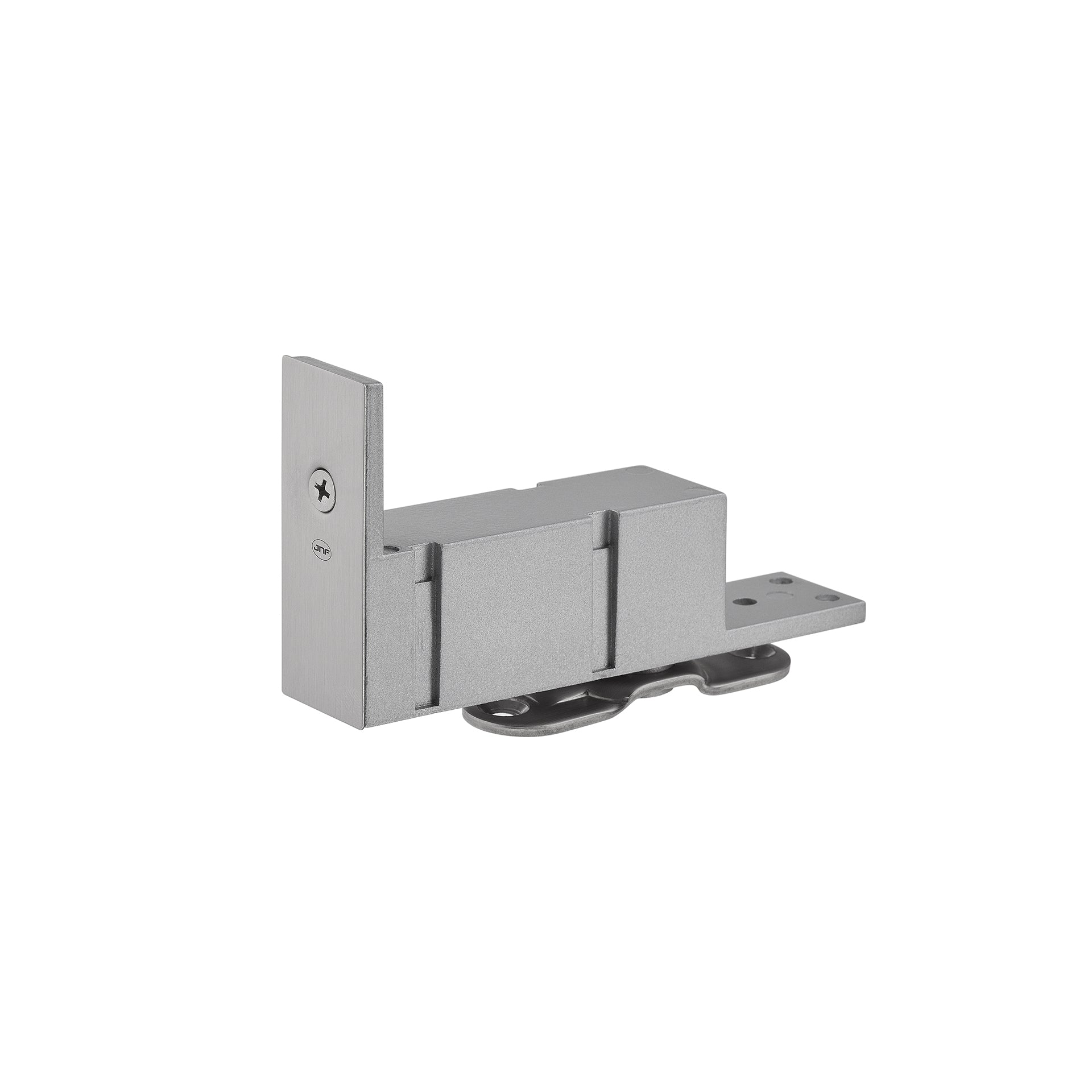

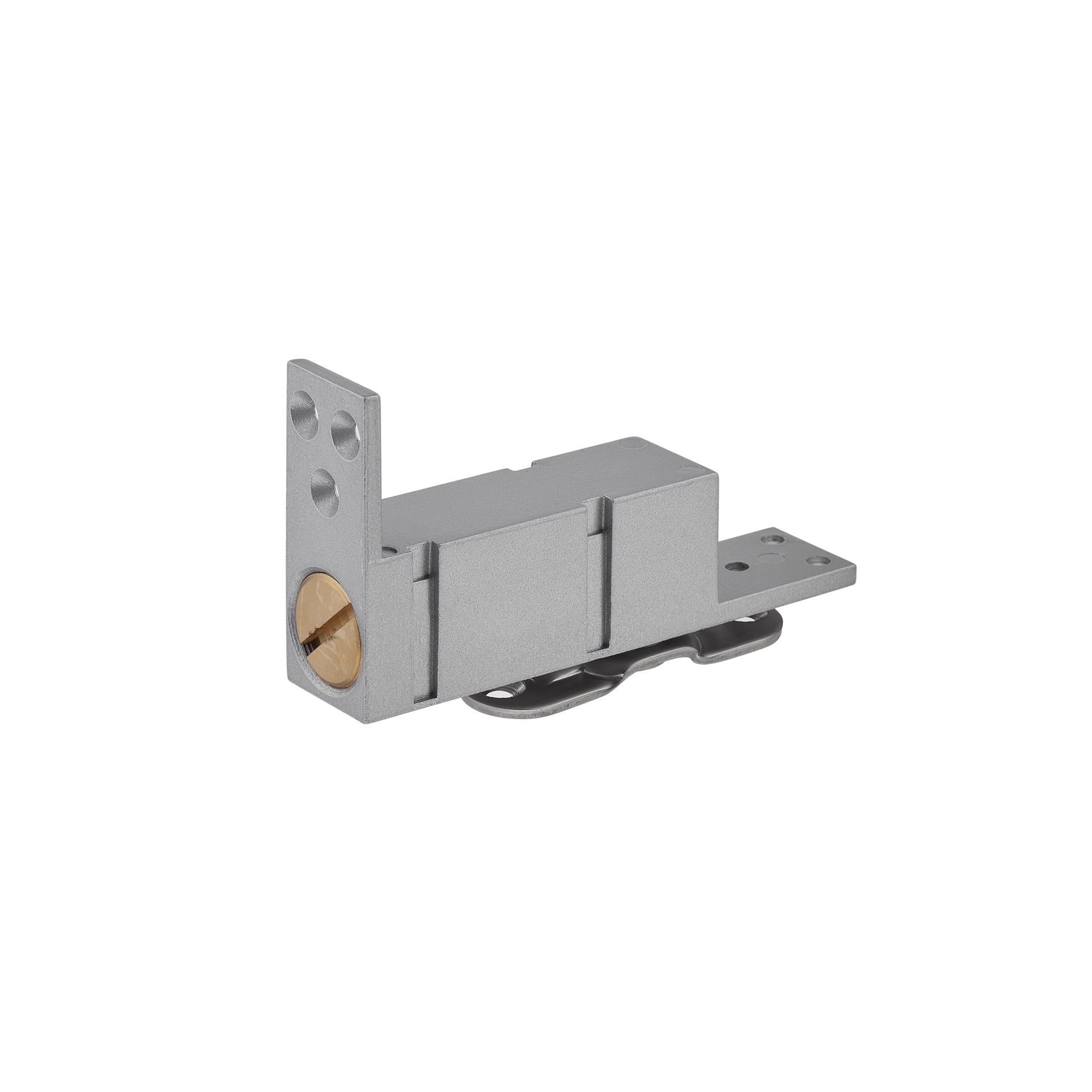

JNF IN.05.199 Bottom Coil Pivot Spring System With Adjustable Power Stainless Steel

Description

JNF IN.05.199 Bottom Pivot with Spring System

JNF IN.05.199 Pivot Sets are primarily designed for handling large and heavy doors that present challenges for traditional hinge systems. They are ideal for applications such as oversized commercial doors, industrial entrances, and main entry doors in public buildings, where stability and control are essential.

Functionality: The main purpose of pivot sets is to facilitate the smooth rotation of doors around a fixed vertical axis. Unlike conventional hinges, pivot sets offer superior support and balance, allowing doors to swing effortlessly while maintaining structural integrity. They are an excellent solution for doors that are too heavy, wide, or uniquely designed for standard hinges.

  • Double-Action Operation: Suitable for rebated doors, enabling a 180-degree opening on both sides and a 90-degree hold-open position.
  • Adjustable Spring Force: Allows fine-tuning of the closing strength for smooth and controlled door movement.
  • Lightweight Pulling Force: The system is designed with a maximum pulling force of 0.5Kg, making it effortless to open and close doors.
  • Indoor Use Only: Best suited for interior applications where precise door control is needed.
  • Complete Installation Kit: Supplied with all necessary fixings for quick and easy setup.



Specifications:

  • Material: High-grade Aluminum
  • Maximum Door Width: Up to 900mm
  • Maximum Door Weight: Supports doors up to 45Kg
  • Recommended Door Thickness: 35mm to 45mm

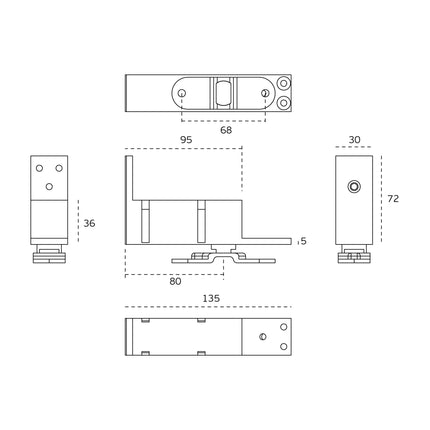

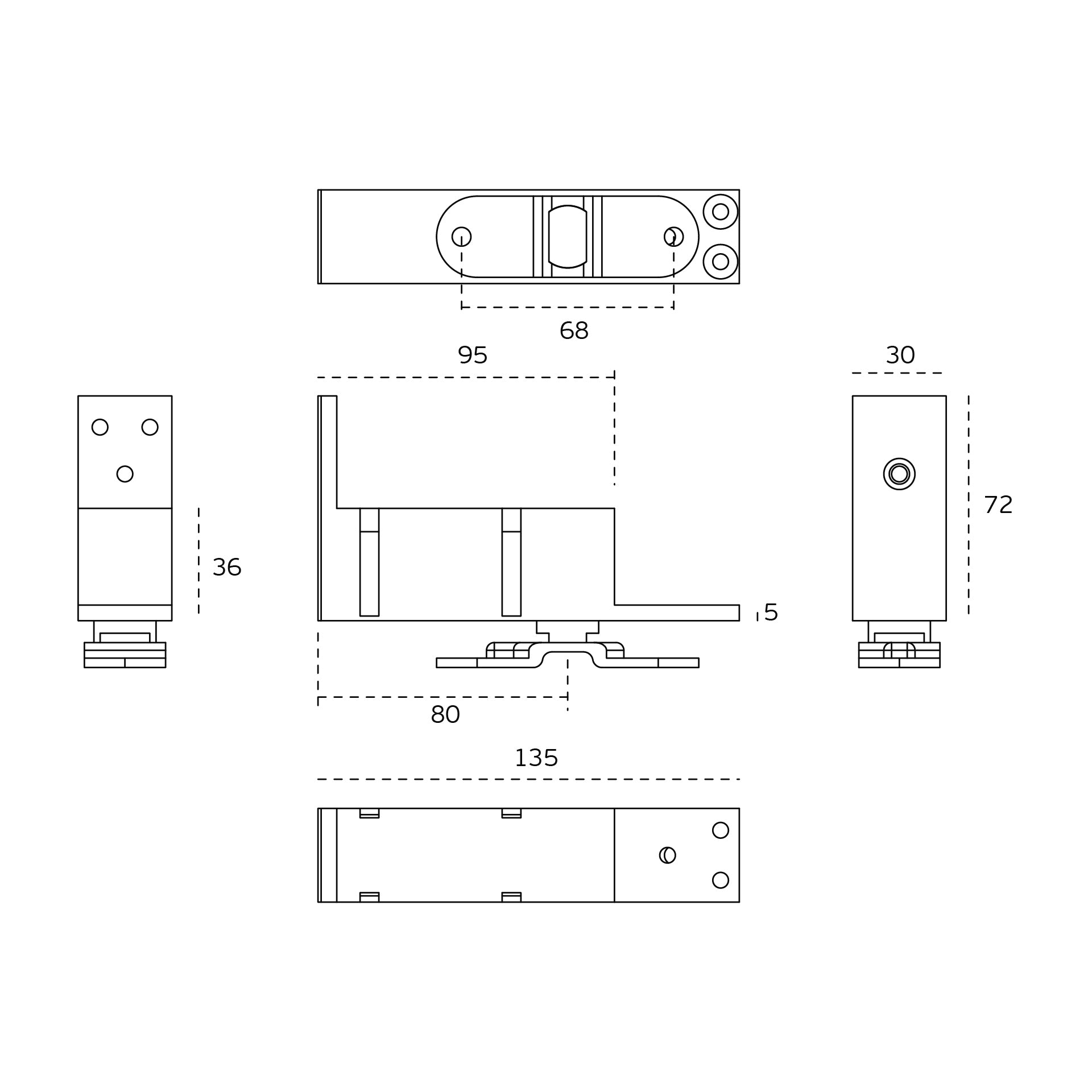

  • Dimensions:
    • Length: 135mm
    • Height: 72mm
  • Finish: Stainless Steel (for durability and corrosion resistance)
JNF IN.05.199 Bottom Coil Pivot Spring System With Adjustable Power Stainless Steel
Product form

SKU: IN.05.199

Delivery by 3-6 business days  Made to Order Products 3 Weeks

  • Shipped today? Order within: Oct 12, 2025 17:00:00 +1100

$166.06 $141.15 Incl. TAX

      • Guaranteed secure & safe checkout.

        stripe

      For further technical details or installation instructions, please refer to the provided product manuals

        Features

      • Double Action Door Pivot: 180º Opening and 90º Hold Open
      • Adjustable Spring Force: Customizable Closing Force
      • Durable Construction: Crafted from aluminum and stainless steel and Supports doors weighing up to 45 kg
      • Smooth Operation: adjustable spring ensures your door closes softly and consistently
      • High Durability: Made from robust materials, this pivot is built to last, providing long-term value
      • Versatile Application: Whether for residential or commercial use,

      Description

      JNF IN.05.199 Bottom Pivot with Spring System

      JNF IN.05.199 Pivot Sets are primarily designed for handling large and heavy doors that present challenges for traditional hinge systems. They are ideal for applications such as oversized commercial doors, industrial entrances, and main entry doors in public buildings, where stability and control are essential.

      Functionality: The main purpose of pivot sets is to facilitate the smooth rotation of doors around a fixed vertical axis. Unlike conventional hinges, pivot sets offer superior support and balance, allowing doors to swing effortlessly while maintaining structural integrity. They are an excellent solution for doors that are too heavy, wide, or uniquely designed for standard hinges.

      • Double-Action Operation: Suitable for rebated doors, enabling a 180-degree opening on both sides and a 90-degree hold-open position.
      • Adjustable Spring Force: Allows fine-tuning of the closing strength for smooth and controlled door movement.
      • Lightweight Pulling Force: The system is designed with a maximum pulling force of 0.5Kg, making it effortless to open and close doors.
      • Indoor Use Only: Best suited for interior applications where precise door control is needed.
      • Complete Installation Kit: Supplied with all necessary fixings for quick and easy setup.



      Specifications:

      • Material: High-grade Aluminum
      • Maximum Door Width: Up to 900mm
      • Maximum Door Weight: Supports doors up to 45Kg
      • Recommended Door Thickness: 35mm to 45mm
      • Dimensions:
        • Length: 135mm
        • Height: 72mm
      • Finish: Stainless Steel (for durability and corrosion resistance)
