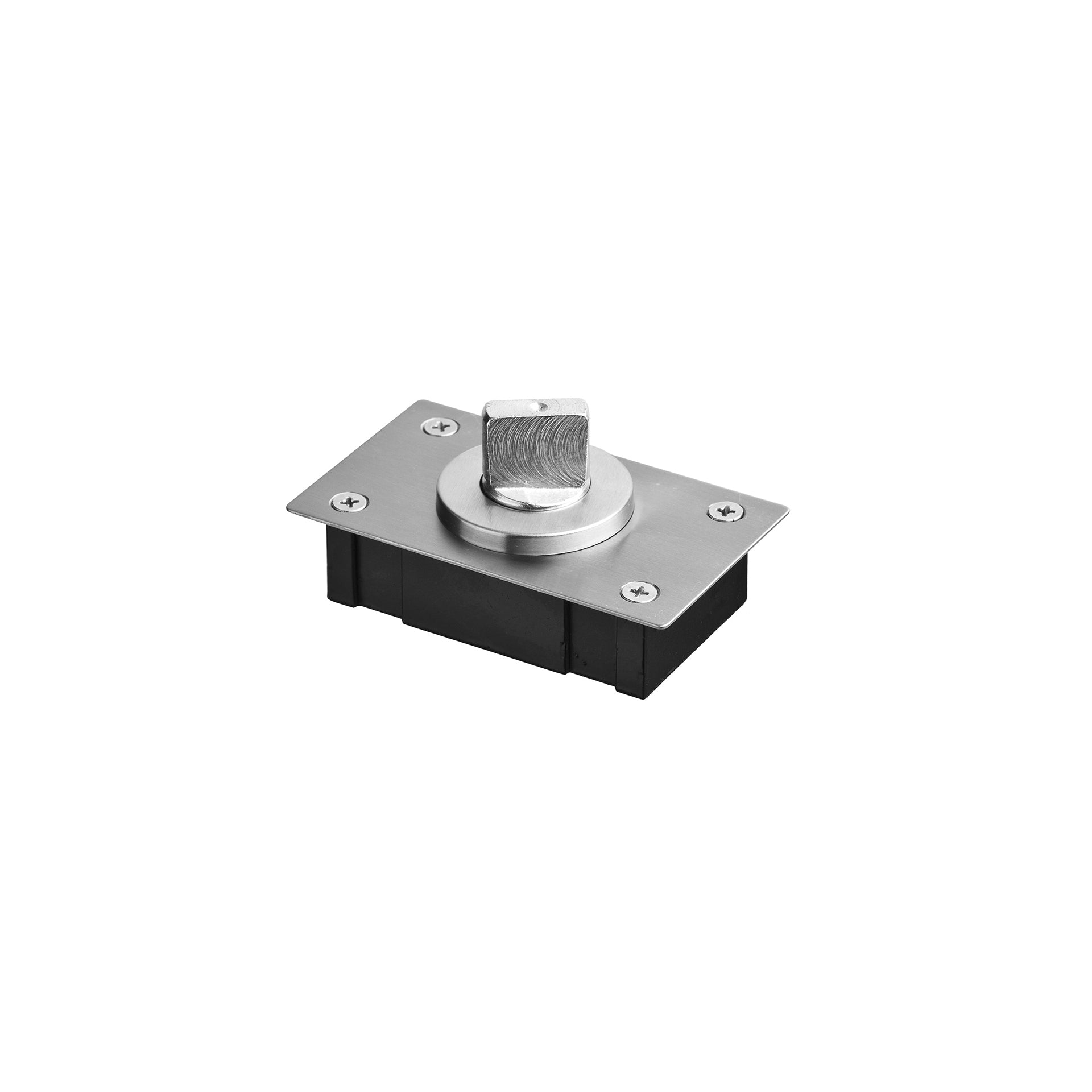

JNF IN.81.108 Adjustable Free Floor Pivot for Glass Doors Satin Stainless Steel

Description

JNF IN.81.108 Adjustable Free Floor Pivot is a premium hardware component specifically designed for glass door installations. Constructed from high-quality stainless steel EN 1.4301 (AISI 304), it offers superior durability, corrosion resistance, and a sleek, modern appearance. The floor pivot is suitable for both residential and commercial spaces where a seamless and smooth door operation is required.

This model features an adjustable two-axis mechanism, ensuring precise alignment and smooth door movement. The built-in ball bearing system guarantees a quiet and effortless pivot action, enhancing the functionality and aesthetics of glass doors. The pivot is available in a satin finish, providing a refined and polished look that complements various interior styles.

Features:

    • Two-Axis Adjustment: The pivot is adjustable in two axes (+/- 6mm horizontally and +/- 5mm vertically), allowing for precise positioning and optimal door alignment.
    • Durable Material: Made from stainless steel EN 1.4301 (AISI 304), providing excellent resistance to corrosion and wear.
    • Smooth and Quiet Operation: Equipped with a ball bearing mechanism that ensures smooth and silent door movements, ideal for high-traffic areas.
    • Satin Finish: The satin finish enhances the visual appeal, offering a modern and elegant look suitable for a variety of interiors.
    • Rectangular Spindle Design: The pivot includes a rectangular spindle, making it compatible with various glass door configurations.
    • Residential and Commercial Glass Doors: Ideal for use in both residential and commercial glass doors, providing smooth and controlled door operation.
    • High-Traffic Areas: Suitable for spaces with frequent use, such as offices, hotels, and retail environments, due to its robust construction and smooth performance.
    • Interior Design Projects: Perfect for high-end interior design projects where precise door alignment and silent functionality are essential.

Specifications:

    • Model: IN.81.108
    • Material: Stainless steel EN 1.4301 (AISI 304)
    • Finish: Satin
    • Type: Adjustable Free Floor Pivot
    • Adjustment:
      • Horizontal Adjustment: +/- 6mm
      • Vertical Adjustment: +/- 5mm
    • Shape: Rectangular

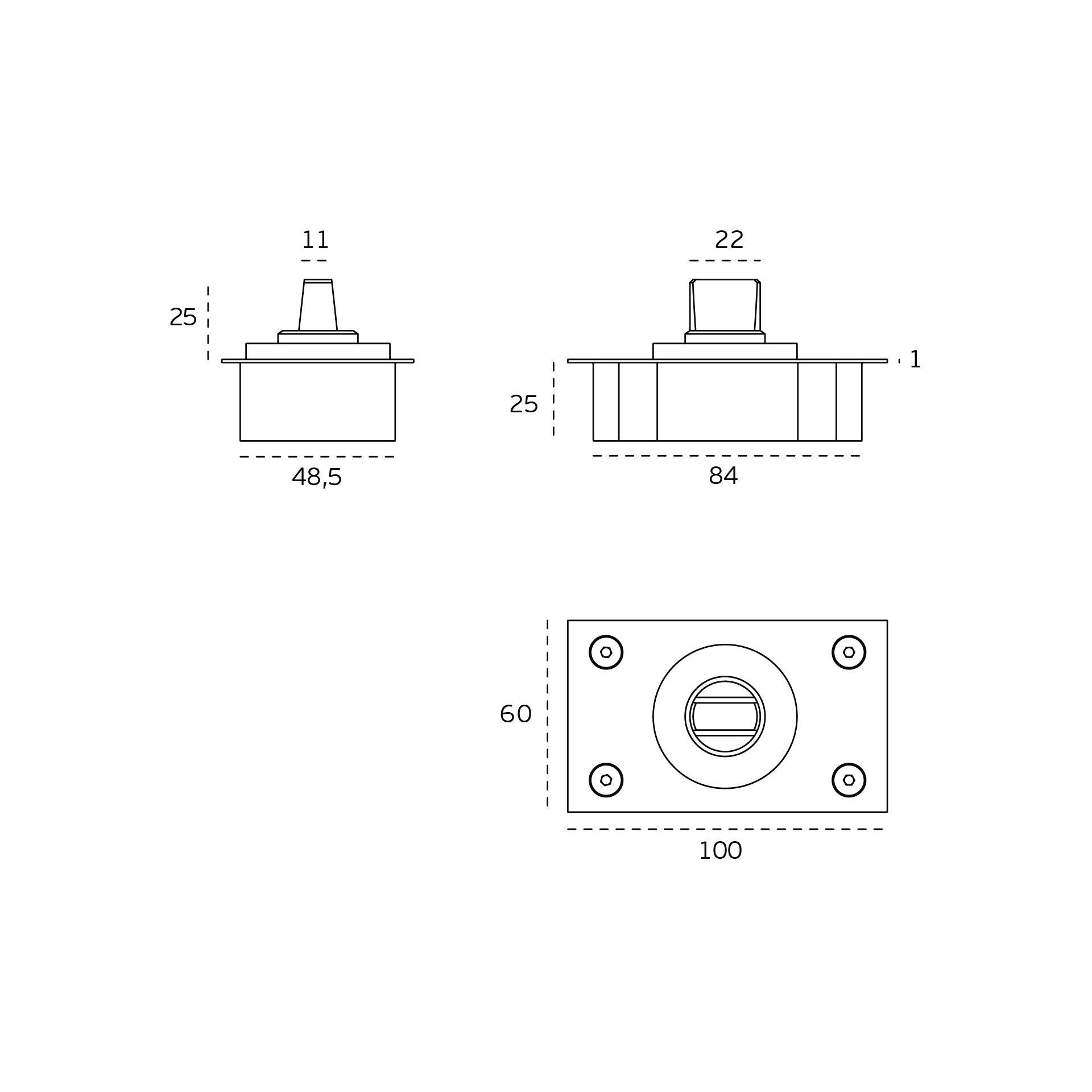

    • Dimensions:
      • Height: 25mm
      • Length: 100mm
      • Width: 60mm
      • Base Thickness: 48.5mm



JNF IN.81.108 Adjustable Free Floor Pivot for Glass Doors Satin Stainless Steel
Product form

SKU: IN.81.108

Delivery by 3-6 business days  Made to Order Products 3 Weeks

  • Shipped today? Order within: Oct 12, 2025 17:00:00 +1100

$36.94 $33.25 Incl. TAX

      • Guaranteed secure & safe checkout.

        stripe

      For more information about this Product or Technical details please refer this PDF's:

        Features

      • Precise Alignment and Control: The adjustable two-axis mechanism allows for easy and accurate door alignment, ensuring optimal performance and smooth operation.
      • Durable and Corrosion-Resistant: Made from high-quality stainless steel, this pivot is built to withstand heavy use and harsh environments.
      • Elegant and Modern Design: The satin finish and clean lines provide a sophisticated look that complements contemporary glass door designs.

      Description

      JNF IN.81.108 Adjustable Free Floor Pivot is a premium hardware component specifically designed for glass door installations. Constructed from high-quality stainless steel EN 1.4301 (AISI 304), it offers superior durability, corrosion resistance, and a sleek, modern appearance. The floor pivot is suitable for both residential and commercial spaces where a seamless and smooth door operation is required.

      This model features an adjustable two-axis mechanism, ensuring precise alignment and smooth door movement. The built-in ball bearing system guarantees a quiet and effortless pivot action, enhancing the functionality and aesthetics of glass doors. The pivot is available in a satin finish, providing a refined and polished look that complements various interior styles.

      Features:

        • Two-Axis Adjustment: The pivot is adjustable in two axes (+/- 6mm horizontally and +/- 5mm vertically), allowing for precise positioning and optimal door alignment.
        • Durable Material: Made from stainless steel EN 1.4301 (AISI 304), providing excellent resistance to corrosion and wear.
        • Smooth and Quiet Operation: Equipped with a ball bearing mechanism that ensures smooth and silent door movements, ideal for high-traffic areas.
        • Satin Finish: The satin finish enhances the visual appeal, offering a modern and elegant look suitable for a variety of interiors.
        • Rectangular Spindle Design: The pivot includes a rectangular spindle, making it compatible with various glass door configurations.
        • Residential and Commercial Glass Doors: Ideal for use in both residential and commercial glass doors, providing smooth and controlled door operation.
        • High-Traffic Areas: Suitable for spaces with frequent use, such as offices, hotels, and retail environments, due to its robust construction and smooth performance.
        • Interior Design Projects: Perfect for high-end interior design projects where precise door alignment and silent functionality are essential.

      Specifications:

        • Model: IN.81.108
        • Material: Stainless steel EN 1.4301 (AISI 304)
        • Finish: Satin
        • Type: Adjustable Free Floor Pivot
        • Adjustment:
          • Horizontal Adjustment: +/- 6mm
          • Vertical Adjustment: +/- 5mm
        • Shape: Rectangular
        • Dimensions:
          • Height: 25mm
          • Length: 100mm
          • Width: 60mm
          • Base Thickness: 48.5mm
