Description

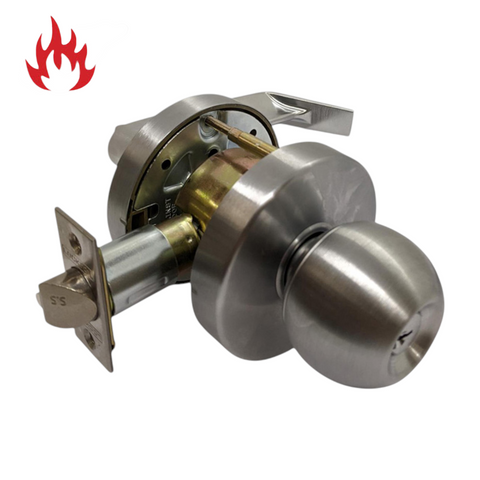

LOCKTON EL6000 is a commercial-grade 6000 Series Cylindrical Knob & Lever Combo Set in Satin Chrome, designed for entrance function locking. The external knob is locked by key while the internal lever allows free egress at all times.

DDA compliant, fire rated to 2 hours, and cycle tested to 400,000 operations, this combo set is built for high-traffic educational and commercial environments.

Key Features

• Entrance function — outside knob locked by key, inside lever always free
• 70mm backset cylindrical latch
• 85mm rose diameter
• 1 x 6-pin C4 PD cylinder included
• 2 x keys per lockset
• Accepts most restricted key systems
• Door thickness 35–45mm (46–50mm with Art. CL6-4650)
• 54mm diameter cross bore door prep
• Assembly screw size: M8 x 40mm
• Standard ‘T’ strike included
• Fire rated — 2 hours
• 400,000 cycle tested
• DDA compliant — AS1428.1-2009 (internal lever)
• Commercial grade
• 10-year warranty

Why Choose This?

• Fire rated to 2 hours — suitable for fire door applications
• DDA compliant internal lever — AS1428.1-2009
• 400
• 000 cycle tested for high-traffic durability
• Commercial grade construction
• Accepts most restricted key systems
• 10-year manufacturer warranty
• Entrance function — safe egress at all times
