Description

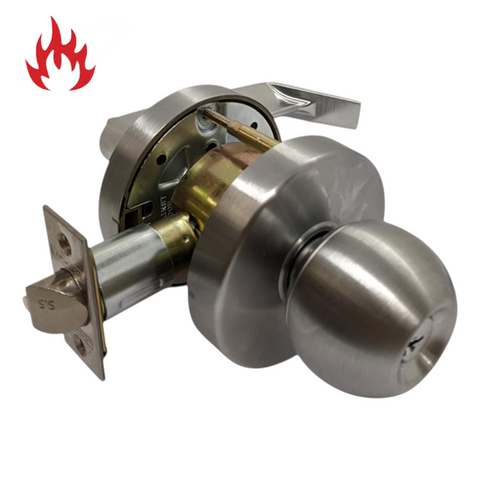

LOCKTON EL6062 is a commercial-grade 6000 Series Cylindrical Knob & Lever Combo Set in Satin Chrome, designed for storeroom function locking. Both the external knob and internal lever are locked at all times — entry and exit by key only, ideal for secure storeroom and utility room applications.

DDA compliant, fire rated to 2 hours, and cycle tested to 400,000 operations, this combo set is built for high-traffic commercial environments.

Key Features

• Storeroom function — both sides locked, key required for entry and exit
• 70mm backset cylindrical latch
• 85mm rose diameter
• 1 x 6-pin C4 PD cylinder included
• 2 x keys per lockset
• Accepts most restricted key systems
• Door thickness 35–45mm (46–50mm with Art. CL6-4650)
• 54mm diameter cross bore door prep
• Assembly screw size: M8 x 40mm
• Standard ‘T’ strike included
• Fire rated — 2 hours
• 400,000 cycle tested
• DDA compliant — AS1428.1-2009 (internal lever)
• Commercial grade
• 10-year warranty

Why Choose This?

• Fire rated to 2 hours — suitable for fire door applications
• DDA compliant internal lever — AS1428.1-2009
• 400
• 000 cycle tested for high-traffic durability
• Commercial grade construction
• Accepts most restricted key systems
• 10-year manufacturer warranty
• Storeroom function — key required both sides for maximum security
