Description

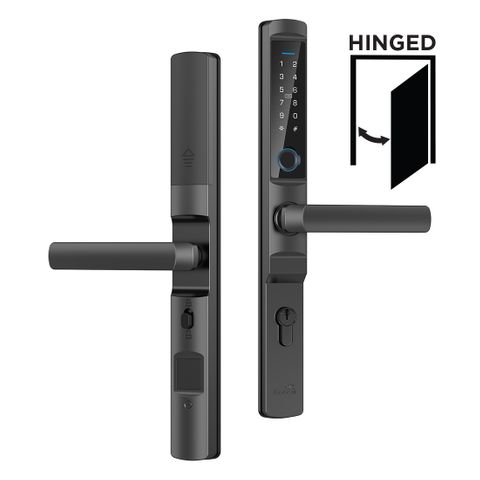

Upgrade your home or commercial entry with the Lockton ELEV36-BLK-H25 E-Series Euro Narrow Smart Door Lock in Matte Black. Designed for hinged door installations, this intelligent leverset combines fingerprint recognition, digital PIN code, RFID tag and mobile app control into one sleek, narrow-profile package — all while retrofitting your existing euro mortice lock.

Whether you're securing a front door, office entry or rental property, the ELEV36 delivers keyless convenience without compromising on security. The IP66-rated external handle means it performs in virtually any environment, and the TTLock app lets you manage access, issue temporary codes and monitor entry from anywhere.

Key Features

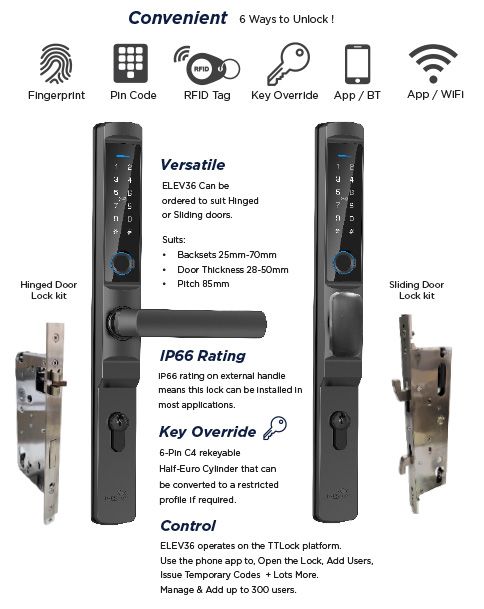

• 4-in-1 Smart Access — Fingerprint, Digital PIN Code, RFID Tag and TTLock Mobile App
• Designed for Hinged Doors — narrow leverset profile suits standard residential and commercial hinged door installations
• Double Point Locking — ELEV36 Smart Euro Mortice Lock provides enhanced security with double point locking
• Retrofits Existing Mortice Locks — available in multiple backset sizes (25–70mm) to suit most existing installations
• IP66 Rated External Handle — weatherproof for indoor and outdoor applications
• 6-Pin C4 Rekeyable Half Euro Cylinder — key override with option to convert to restricted profiles
• Fingerprint Sensor Positioned for Thumb Entry — naturally reads thumb print for fast, intuitive access
• Deadbolt by Lever — pull lever up to throw deadbolt, combining latch and deadbolt security in one action
• Up to 300 Users — ideal for shared access, rental properties and commercial premises
• TTLock App Control — open lock, add users, issue temporary codes and more via smartphone
• Optional G2/G3 Gateway — add remote internet access and control via WiFi or Ethernet
• Step-by-Step Installation — clear instructions for straightforward DIY or trade installation
• 3 Year Warranty

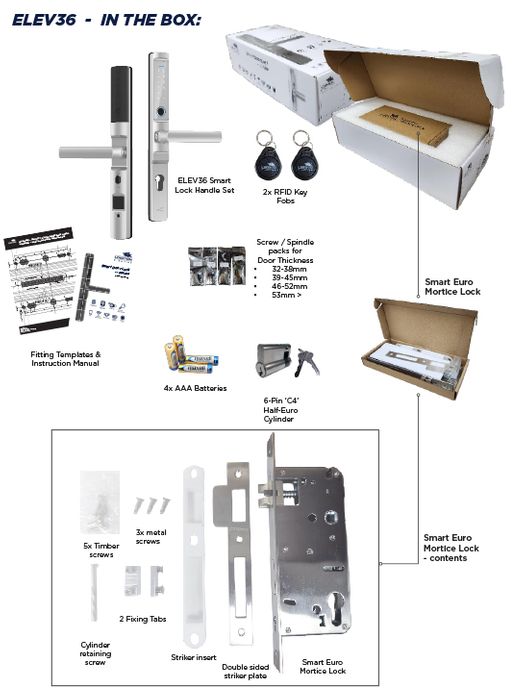

What's in the Box

• 1 x ELEV36 Smart Lock Handle Set
• 2 x RFID Key Fobs
• 4 x Screw/Spindle Packs (for varying door thicknesses)
• 4 x AAA Batteries
• 1 x Smart Euro Mortice Lock (25mm backset)
• 1 x 6-Pin C4 Half-Euro Cylinder
• 1 x Fitting Template
• 1 x Instruction Manual

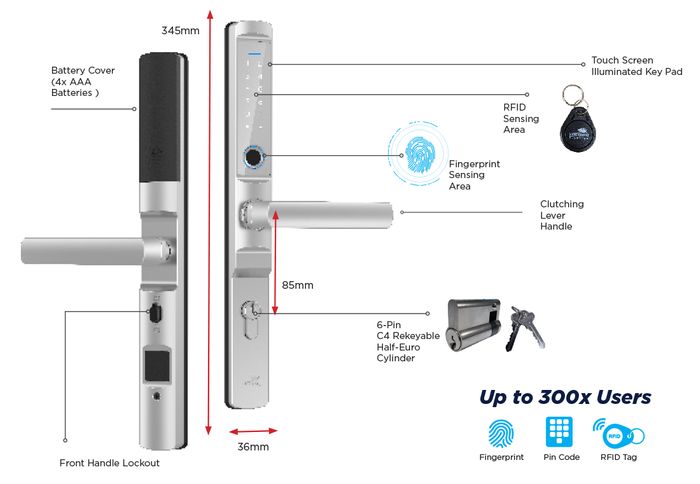

Specifications

• Finish: Matte Black
• Dimensions (L x W): 345 x 36mm
• Pitch: 85mm
• IP Rating: 66 (External Handle Only)
• Lock Backset: 25mm
• Backset Range Available: 25–70mm
• Mortice Lock Faceplate: 240 x 22mm
• Mortice Lock Strike Plate: 198 x 24mm
• Suitable Door Thickness: 28–50mm
• Spindle Size: 8mm
• Screw Type: M5
• Handle Projection from Lock Body: 30mm
• Handle Length: 130mm
• External Handle Protrusion: 58mm from door
• Internal Handle Protrusion: 46mm from door
• Power Supply: 4 x AAA Alkaline Batteries
• Battery Life: Approx. 10,000 openings
• Safe Working Temperature: −20°C to 50°C
• Warranty: 3 Years

Why Choose This?

• 4-in-1 smart access: Fingerprint
• PIN
• RFID
• TTLock App
• Double point locking for enhanced security
• Retrofits existing euro mortice locks (25–70mm backset range)
• IP66 rated external handle — suits indoor
• outdoor applications
• 6-Pin C4 rekeyable half euro cylinder with key override
• Up to 300 users — ideal for rentals
• commercial premises
• Deadbolt by lever — combined latch
• deadbolt security
• Approx. 10
• 000 openings per battery set
• Optional G2/G3 Gateway for remote internet access
• 3 Year Warranty
