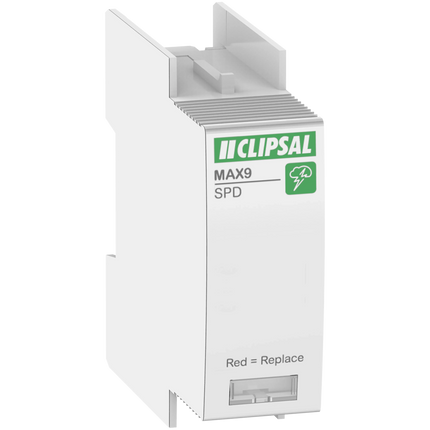

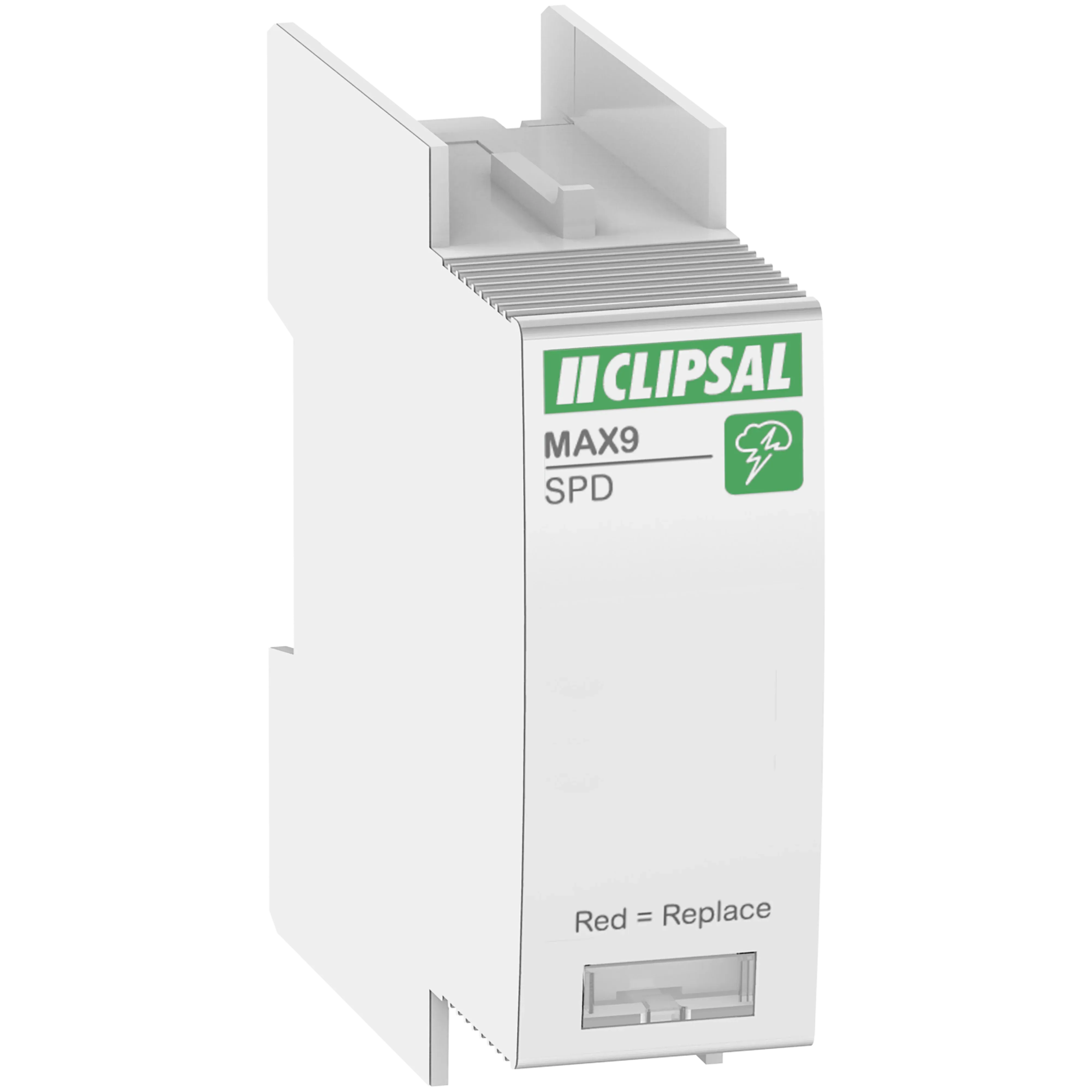

This MAX9 cartridge surge protection device is a modular surge arrester. It is a 1 Pole surge arrester. This MAX9 surge arrester is compatible with TN-C, TN-S and TT earthing system. The maximum discharge current is 40kA. The nominal discharge current is 15kA. It ensures protection of electronic devices against destruction by lightning. It is recommended in building supplied by overhead lines and protected. It is also recommended in buildings protected by a lightning arrester combined with a type 2 surge arrester. It has a RCM quality lable. The Ue rated operational voltage is 240VAC +/-6%. The Up maximum voltage protection level is 1.6kV. The Uc maximum continuous operating voltage is 350VAC. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 64mm. The product colour is white (RAL9003). The product weight is 0.051kg. According to IEC 60529 standard, the degree of protection is IP20 and IK03 conforming to IEC 62262 standard. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN 61643-11 and IEC 61643-11 standards.
| System configuration TT |
Yes |
| System configuration TN-C |
Yes |
| Max. discharge surge current (8/20) |
40 kA |
| Construction size |
1 modular spacing |
| Number of conductors (without earthing) |
1 |
| System configuration IT |
No |
| Leakage-current free |
No |
| Nominal voltage AC |
240 V |
| Integrated short-circuit protection |
No |
| Integrated backup fuse |
No |
| Nominal discharge surge current (8/20) |
15 kA |
| Short-circuit breaking capacity (Isccr) |
50 kA |
| |
| System configuration DC |
No |
| System configuration TN-S |
Yes |
| System configuration TN-C-S |
Yes |
| Category type 2 |
Yes |
| Max. continuous voltage AC |
350 V |
| Degree of protection (IP) |
IP20 |
| Voltage protection level |
1.6 kV |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| System configuration TN |
Yes |
| Signalling at the device |
Optical |
| Model |
Max9 |
