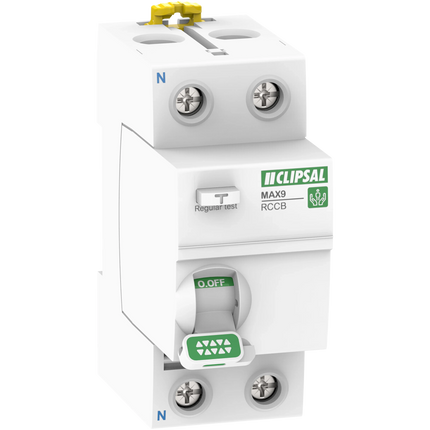

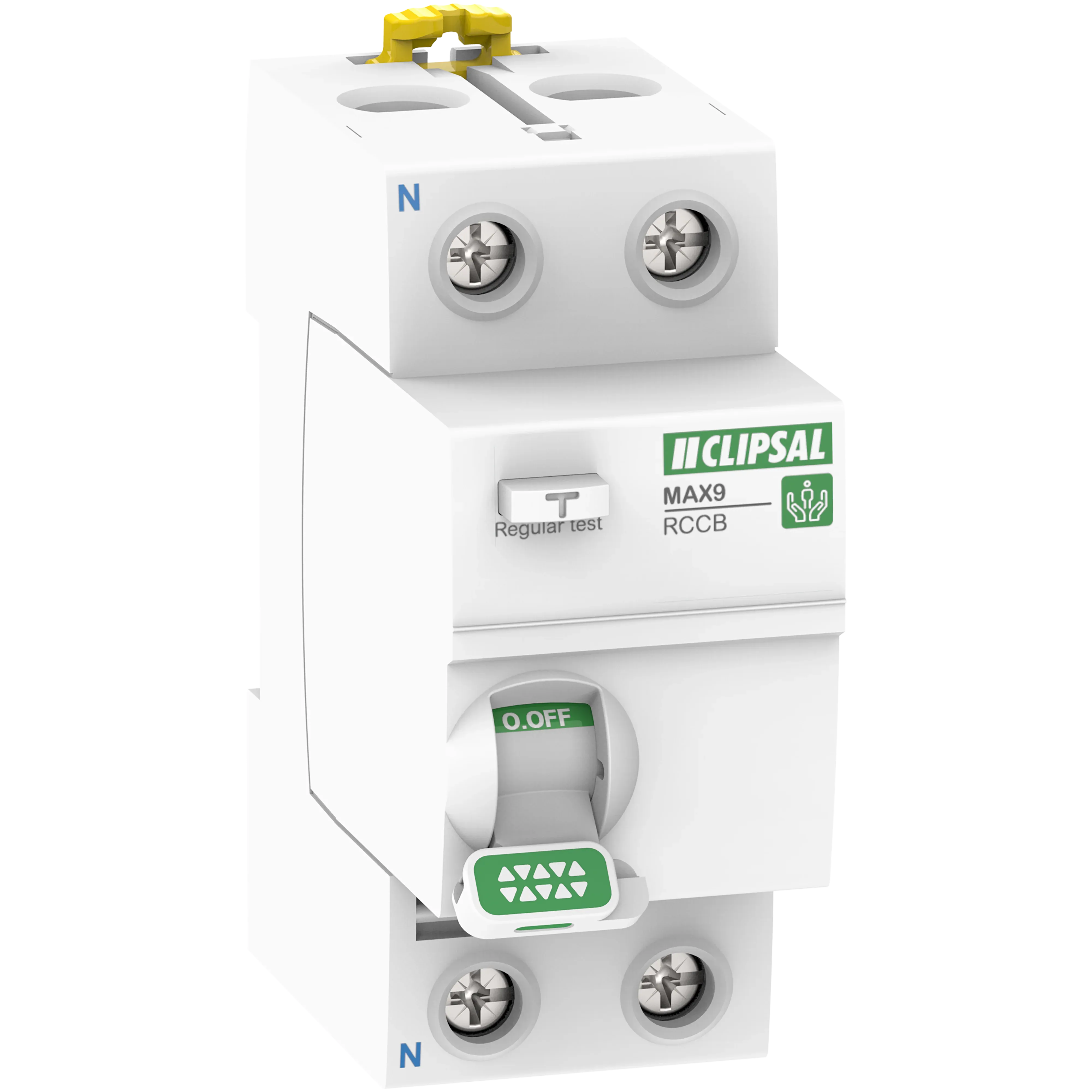

Name: Clipsal MAX9 Residual Current Circuit Breaker (RCCB) 2P, 40A, 30mA, A Type | MX9RC240
Brand: Decorus Architectural
SKU: V1202-9311554813253
Price: 154.95 AUD

↩️ Easy 30-Day Returns
🔒 Secure Checkout — Multiple Payment Options
🇦🇺 Proudly Australian Owned & Operated

Clipsal MAX9 Residual Current Circuit Breaker (RCCB) 2P, 40A, 30mA, A Type | MX9RC240

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

This MAX9 product is a residual current circuit breaker (RCCB). It is a 2P RCCB with 40A In rated current, a sensitivity of 30mA with A type protection class. The earth-leakage protection time delay is instantaneous. The (Im/IΔm) rated breaking and making short circuit capacity is 500A. The (Inc/IΔc) rated conditional rated short circuit current is 6kA. The electrical endurance going up to 4000 cycles and mechanical endurance is going up to 10000 cycles. This product protects against electrical shock by direct or indirect contact and fire hazards. It is also compulsory for all equipment in bathrooms, outdoors. As an high sensitivity residual current circuit breaker, it is recommended for all power sockets. It has a RCM quality lable. The Ue rated operational voltage is 240VAC. The operating frequency is 50Hz. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 85mm x (D) 75mm. The product colour is white (RAL9003). The product weight is 210g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product is complies with IEC 61008-2-1 and EN/IEC 61008-1 standards.

Connectable conductor cross section solid-core	1-35 mm²
Rated impulse withstand voltage Uimp	4 kV
Rated voltage	240 V
Mounting method	DIN rail
Number of poles	2
RAL-number (similar)	9,003
Width in number of modular spacings	2
Ambient temperature during operating	-25-70 °C
Rated fault current	30 A
Built-in depth	44 mm
Short-time delayed tripping	No
Explosion-proof	No
Surge current capacity	0.25 kA


Selective protection	No
With interlocking device	Yes
Rated current	40 A
Degree of protection (IP)	IP20
Voltage type AC-DC	AC
Rated insulation voltage Ui	440 V
Leakage current type	A
Additional equipment possible	No
Frequency	50 Hz
Connectable conductor cross section multi-wired	1-25 mm²
Pollution degree	2
Model	Max9

Clipsal MAX9 Residual Current Circuit Breaker (RCCB) 2P, 40A, 30mA, A Type | MX9RC240

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

SKU: V1202-9311554813253
Barcode: 9311554813253

In stock with supplier - ships in 5 - 8 days Made to Order Products 3 Weeks

$154.95 Incl. TAX

Secure checkout with multiple payment options

Description

This MAX9 product is a residual current circuit breaker (RCCB). It is a 2P RCCB with 40A In rated current, a sensitivity of 30mA with A type protection class. The earth-leakage protection time delay is instantaneous. The (Im/IΔm) rated breaking and making short circuit capacity is 500A. The (Inc/IΔc) rated conditional rated short circuit current is 6kA. The electrical endurance going up to 4000 cycles and mechanical endurance is going up to 10000 cycles. This product protects against electrical shock by direct or indirect contact and fire hazards. It is also compulsory for all equipment in bathrooms, outdoors. As an high sensitivity residual current circuit breaker, it is recommended for all power sockets. It has a RCM quality lable. The Ue rated operational voltage is 240VAC. The operating frequency is 50Hz. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 85mm x (D) 75mm. The product colour is white (RAL9003). The product weight is 210g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product is complies with IEC 61008-2-1 and EN/IEC 61008-1 standards.

Connectable conductor cross section solid-core	1-35 mm²
Rated impulse withstand voltage Uimp	4 kV
Rated voltage	240 V
Mounting method	DIN rail
Number of poles	2
RAL-number (similar)	9,003
Width in number of modular spacings	2
Ambient temperature during operating	-25-70 °C
Rated fault current	30 A
Built-in depth	44 mm
Short-time delayed tripping	No
Explosion-proof	No
Surge current capacity	0.25 kA


Selective protection	No
With interlocking device	Yes
Rated current	40 A
Degree of protection (IP)	IP20
Voltage type AC-DC	AC
Rated insulation voltage Ui	440 V
Leakage current type	A
Additional equipment possible	No
Frequency	50 Hz
Connectable conductor cross section multi-wired	1-25 mm²
Pollution degree	2
Model	Max9
