Description

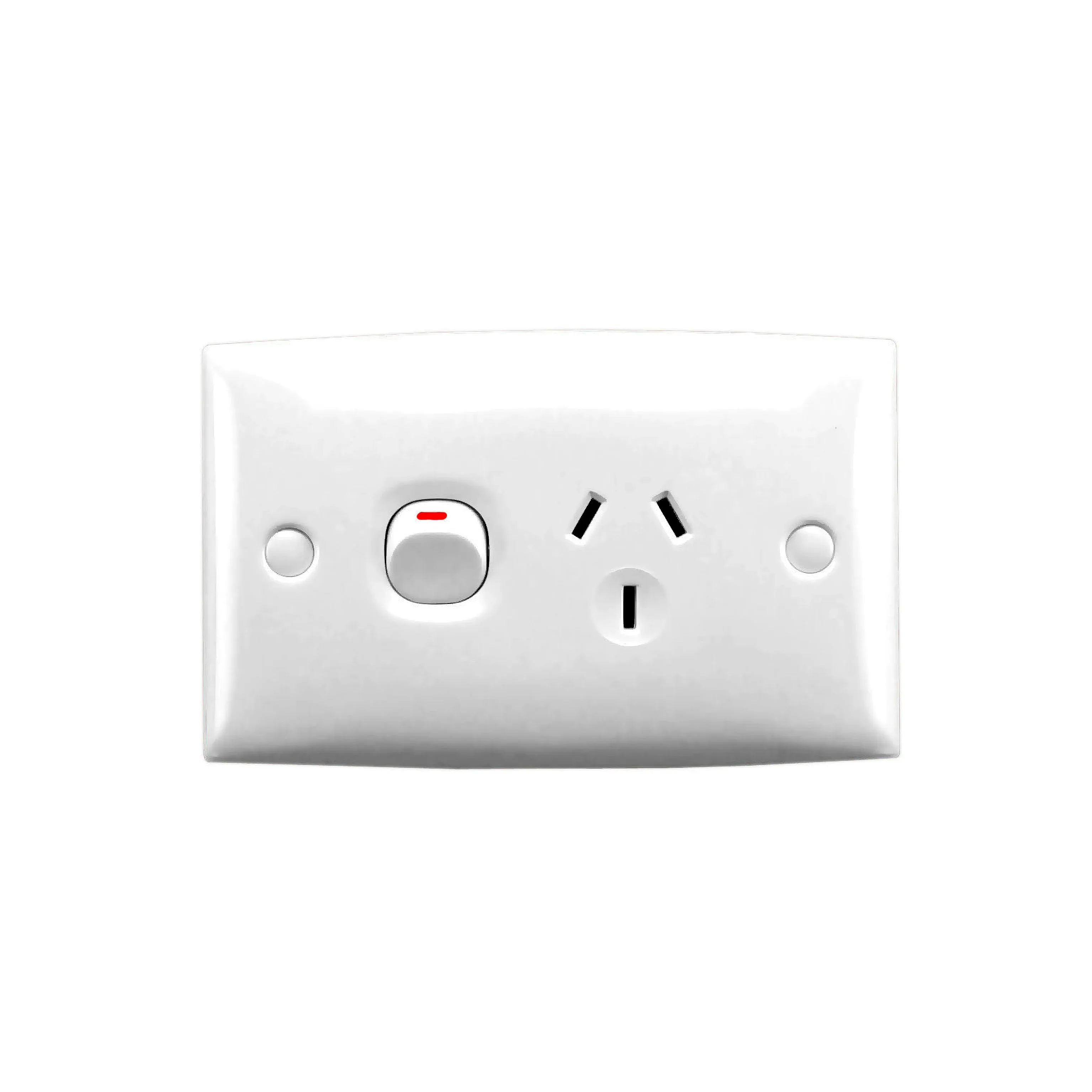

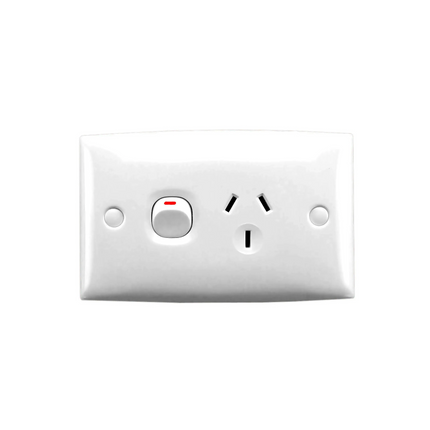

This switched horizontal power outlet from the Stard series features a single GPO rated at 10A and 250V, complete with shuttered outlets for added safety. It is practical and efficient for various applications.
Standard Single Switched Socket. Plate size 115mm x 73mm, Mounting Centres 84mm. Base projection 13mm. Terminals accommodate 4x2.5mm sq. cables. 250V 10A ac only, with Safety Shutter
| Transparent |
No |
| Mounting method |
Flush-mounted |
| Fault current protection |
No |
| Number of socket outlets |
1 |
| Number of active contacts (flat) |
3 |
| Material quality |
Thermoplastic |
| Material |
Plastic |
| Device height |
115 mm |
| Rated current |
10 A |
| RAL-number (similar) |
9,003 |
| Mounting direction |
Horizontal |
| Halogen free |
No |
| Over voltage protection |
No |
| Number of active contacts (round) |
0 |
| Compatible with Apple HomeKit |
No |
| Device width |
73 mm |
| Colour |
White |
| Nominal voltage |
250 V |
| |
| Compatible with Amazon Alexa |
No |
| Concurrently switching neutral conductor |
No |
| Device depth |
14 mm |
| Type of fastening |
Mounting with screw |
| Method of operation |
Rocker/button |
| With miniature fuse |
No |
| IFTTT support available |
No |
| Surface protection |
Untreated |
| Compatible with Google Assistant |
No |
| Surface finishing |
Brilliant |
| Number of poles (total) |
1 |
| Model |
Standard Series |
| Imprint/indication |
Without imprint |
| Lockable |
No |
| With built-in USB power supply |
No |
| With on/off switch |
Yes |
| Number of socket outlets switchable |
1 |
